Cable Waterproof Joint
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Cable Waterproof Joint Introduction
Welcome to Xi'an OUKAMU, where innovation meets reliability. We are pioneers in cable T-connection technology, offering you the world's first cable integrated T-connector. Our cutting-edge products ensure superior performance, safety, and efficiency for your electrical needs. Dive into the details of our Cable Waterproof Joint and discover why it's the perfect solution for your projects.

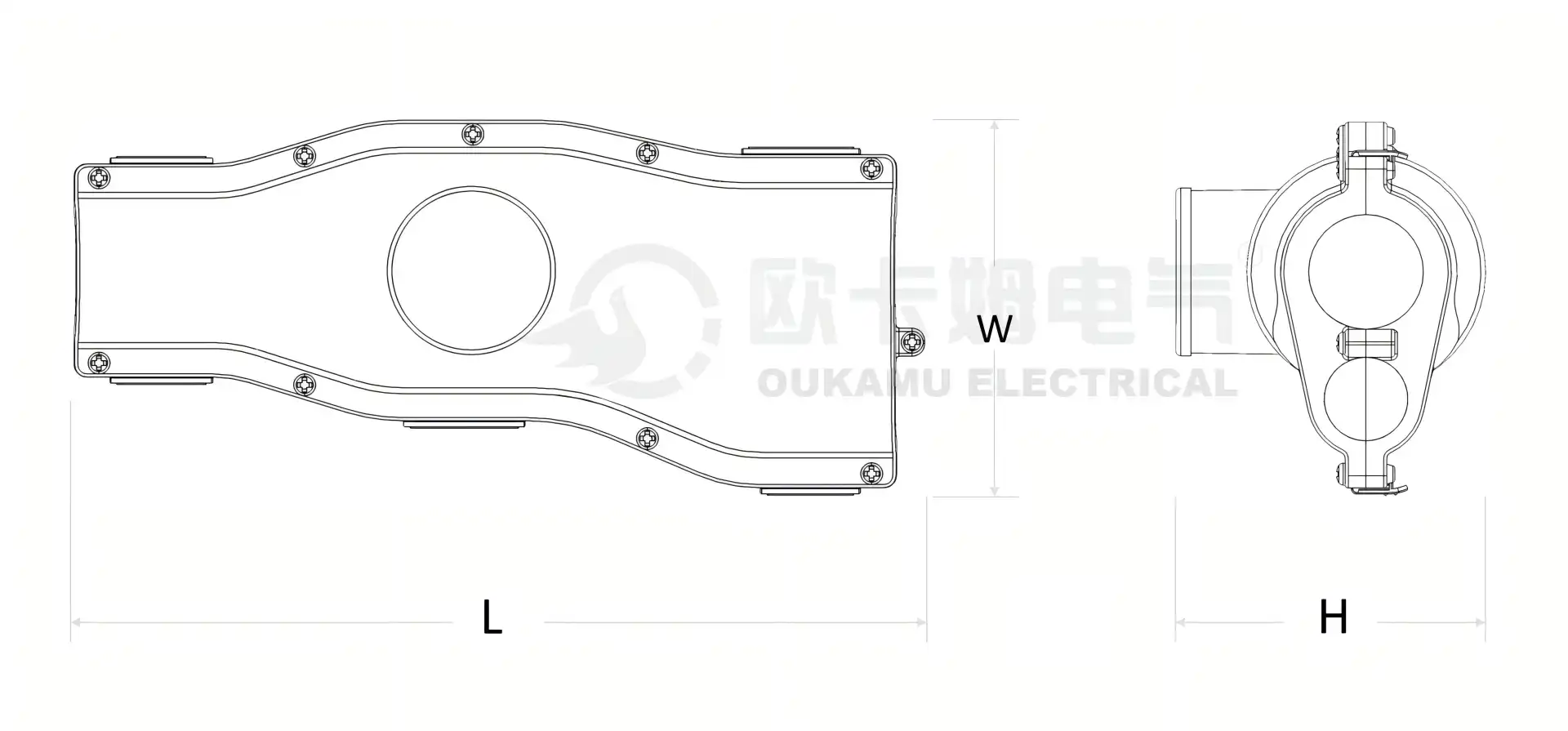

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Advantages
-
On-Site Installation Flexibility: The joint allows for branch connections at any position without the need to cut off the main cable. This feature greatly enhances installation efficiency and reduces project timelines.
-
Integrated Design: Our product integrates multiple functions into a single, compact unit. This results in a safer, more reliable, and aesthetically pleasing connection, minimizing the need for additional components.
-
Compact and Versatile: With its small size and compact structure, this joint can be installed both openly and within bridges, making it versatile for various installation environments.
-
Reusable and Cost-Effective: Designed for ease of construction and maintenance, the joint is reusable, which helps in reducing overall costs and labor.
-
Robust Protection: The joint offers exceptional insulation, flame retardance, fire resistance, dustproof and waterproof properties, as well as resistance to aging and electrochemical corrosion. This ensures long-lasting performance even in demanding conditions.
Technical Features
-
No Need for Cable Cutting: The main cable remains intact, and the connection is made directly on the integrated T-connector body.
-
Comprehensive Insulation and Sealing: The branch cable is fully insulated and sealed, providing optimal protection against environmental factors.
Cable Waterproof Joint Application
Our Cable Waterproof Joint is ideal for various low-voltage applications, particularly for branch connections involving flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables. It's perfect for use in industrial, commercial, and residential projects where high performance and safety standards are paramount.
OEM Service
At Xi'an OUKAMU, we offer tailored OEM services to meet your specific needs. Whether you require custom designs or unique specifications, our team is ready to provide solutions that align with your project requirements. Contact us to discuss how we can support your OEM needs and enhance your product offerings.
FAQ
1. What makes the joint different from traditional connectors?
The product integrates multiple features into a single unit, offering superior protection, ease of installation, and long-term reliability. Unlike traditional connectors, it eliminates the need for main cable cutting and provides enhanced insulation and sealing.
2. Can the joint be used in harsh environmental conditions?
Yes, our joint is designed to withstand harsh environments. It is flame retardant, fire resistant, waterproof, and resistant to dust, aging, and electrochemical corrosion.
3. How does the installation process work?
Installation is straightforward. The joint connects the main and branch cables directly without cutting the main cable. It can be installed in various positions and environments, both openly and in bridges.
4. Is the the product reusable?
Yes, the joint is designed to be reusable, making it a cost-effective option for ongoing projects and maintenance.
5. Where can I purchase the joint?
You can contact us directly at info@okmbranchcable.com for purchasing information, custom orders, or any other inquiries.
Contact Us
For more information about our Cable Waterproof Joint or to discuss your specific needs, please reach out to us:
- Email: info@okmbranchcable.com
