Resin Cable Joint Kit
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Resin Cable Joint Kit Introduction
The Resin Cable Joint Kit by Xi'an OUKAMU represents a significant advancement in cable connection technology. Specializing in the research, development, and manufacturing of cable T-connection products, Xi'an OUKAMU has pioneered the cable integrated T-connector, setting a new standard in the industry. This is designed to simplify and secure cable connections, offering a reliable solution for both professional and industrial applications.
Whether you're dealing with insulated and waterproof cables, low-voltage flame-retardant cables or fire-resistant and mineral-insulated cables, this kit ensures a seamless connection every time.

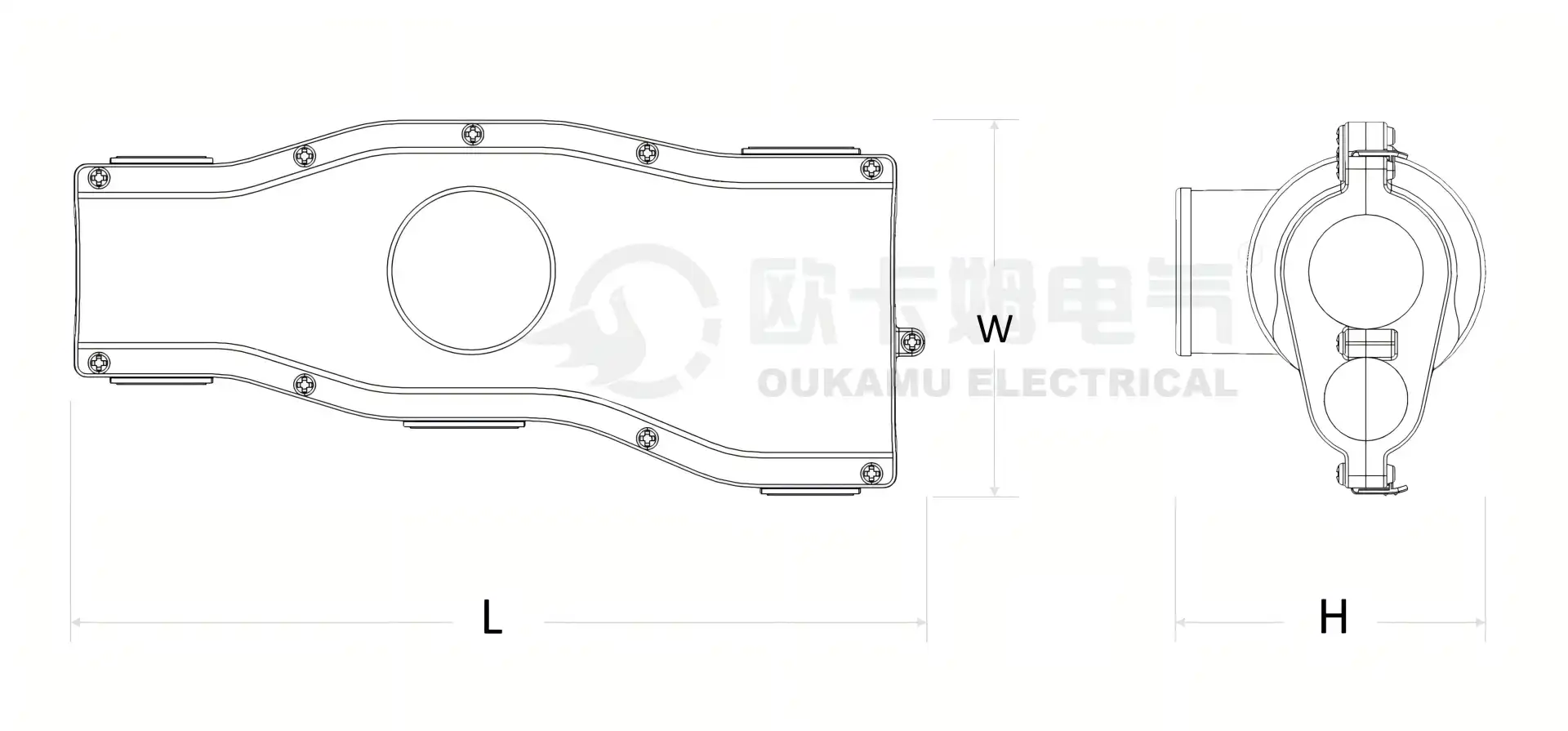

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Technical Parameters
Understanding the technical parameters of the Resin Cable Joint Kit is crucial for ensuring it meets your specific needs. Here are the key specifications:
- Rated Voltage: Suitable for low-voltage applications
- Withstand Voltage: 3.5kV, 5min, no breakdown
- Voltage drop: <3.2mV
- Waterproof Level: IP68
- Insulation Resistance: ≥ 1000 MΩ
- Material: High-quality flame-retardant and fire-resistant resin
These parameters make a versatile and robust choice for various electrical installations.
Technical Features
The Resin Cable Joint Kit is packed with features that make it stand out in the market:
- Non-Cut Main Cable Connection: The main cable remains intact, ensuring the integrity of the main power cable.
- Integrated Insulation: The main and branch cables are connected and insulated within the waterproof, flame-retardant, fire-resistant body of the connector.
- Sealed Branch Cable: The entire branch cable is insulated and sealed, providing added protection against environmental factors.
These features collectively contribute to a reliable and efficient cable connection solution.
Composition and Classification
It comprises several critical components, each designed to work seamlessly together:
- Resin Compound: The primary material used for insulation and sealing, offering excellent fire resistance and durability.
- Outer Shell: Made from high-quality, flame-retardant material, protecting the internal components from external damage.
- Sealant: Ensures that the joint is waterproof, dustproof, and resistant to aging.
- Integrated Branch Connector: Insulated, flame retardant, suitable for copper-copper, aluminum-aluminum, copper-aluminum wire connection.
The kit is classified based on its application and the type of cables it is designed to connect. It is suitable for both residential and commercial electrical installations.
Resin Cable Joint Kit Application
Resin Cable Joint Kit is versatile and applicable across various fields:
- Residential Electrical Installations: Ensures safe and reliable connections in homes and small buildings.
- Commercial Electrical Systems: Ideal for offices, retail spaces, and other commercial environments where secure cable connections are critical.
- Industrial Applications: Suitable for connecting cables in factories, warehouses, and other industrial settings.
- Infrastructure Projects: Used in the construction of bridges, tunnels, and other large-scale infrastructure projects requiring reliable cable connections.
This wide range of applications makes the Resin Cable Joint Kit an essential tool for electricians and engineers alike.
Packaging and Transportation
At Xi'an OUKAMU, we ensure that every Resin Cable Joint Kit is packaged securely and transported safely:
- Packaging: The kit is packed in sturdy, moisture-proof, and shock-resistant boxes to protect the components during transit.
- Transportation: We offer various shipping options, including air, sea, and land transport, depending on your location and urgency.
- Custom Packaging: Available upon request for large orders or specific requirements.
Our attention to detail in packaging and transportation ensures that your product arrives in perfect condition, ready for use.
Contact Us
We’re here to help you with any questions or inquiries about or any of our other products. Please feel free to reach out to us:
- Email: info@okmbranchcable.com
- Phone: +86 13484528204 (Office hours: 9 AM - 6 PM GMT+8)
- Address: Block 11, Science and Technology Enterprise Accelerator II, No.6 West Qinling Avenue, High-Tech Zone, Xi'an, China
We look forward to assisting you with your cable connection needs and providing you with the best solutions in the industry.
