Branch Joints
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Comprehensive cost can be reduced by 300%~500%, high cost performance.
Branch Joints Introduction
Integrated T-connector, also known as the branch joints. This groundbreaking product, invented by Xi'an Oukamu Electric Co., Ltd. in 2015, revolutionizes the way you connect cables, making it convenient, quick, safe, reliable, and aesthetically pleasing.
The branch joints is specifically designed for branch connections of low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables. With its compact structure and small size, it can be installed both openly and in bridges, providing versatility for various applications.
Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |
Installation Steps
1.Tools
2.Determine installation location
3.Open outer sheath

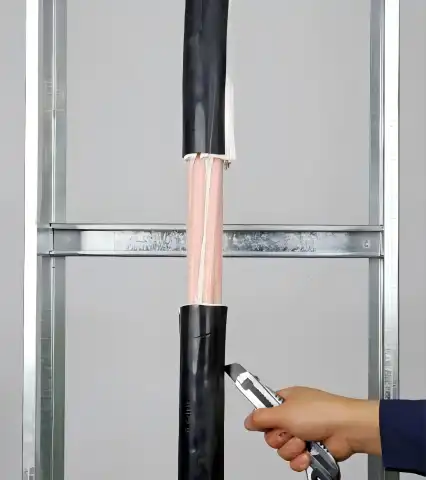

4.Strip main cable insulation

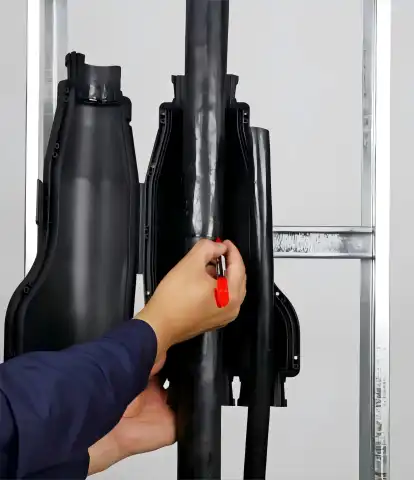

5.Installation of branch cable body

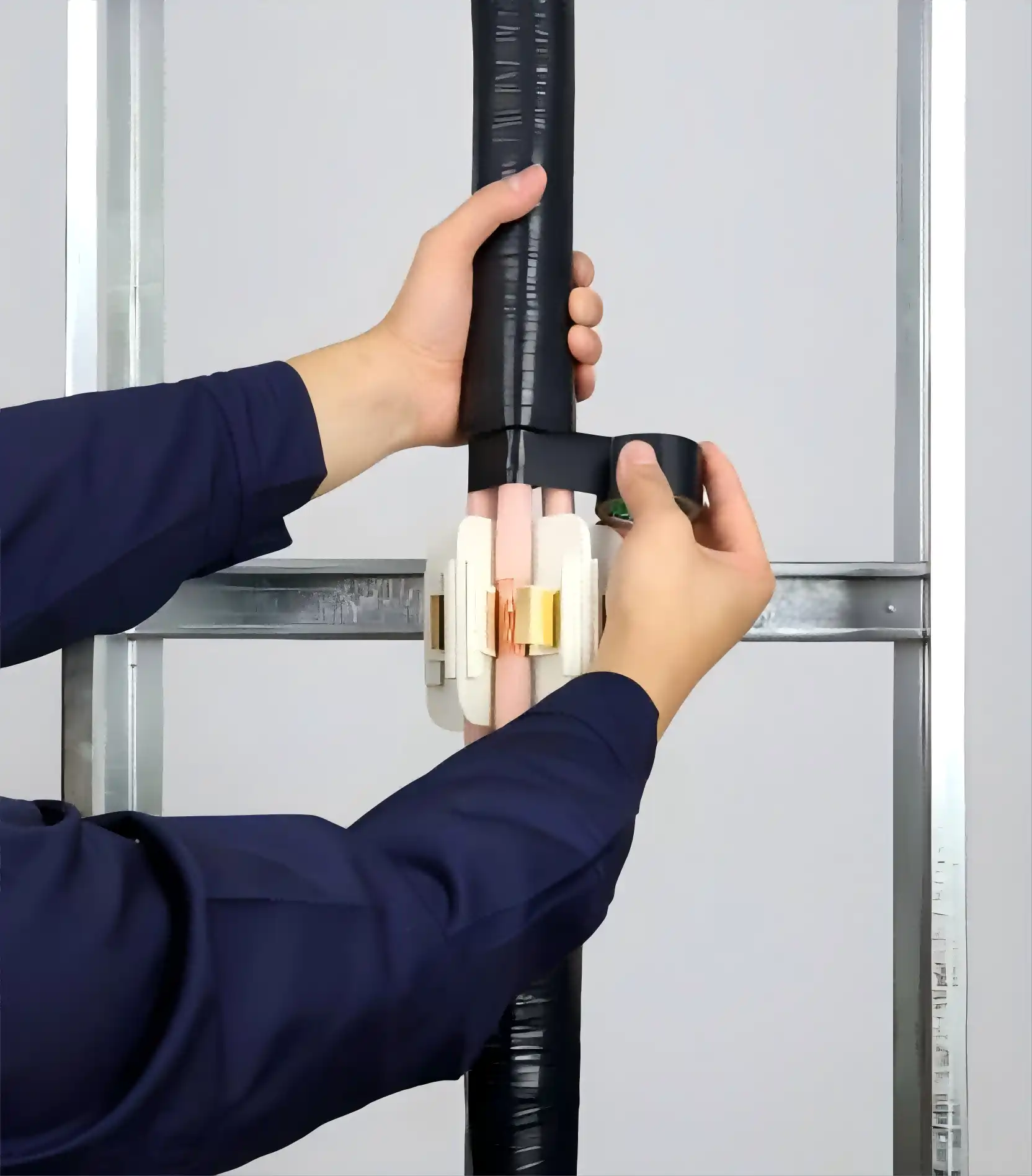

6.Overwrap open seams

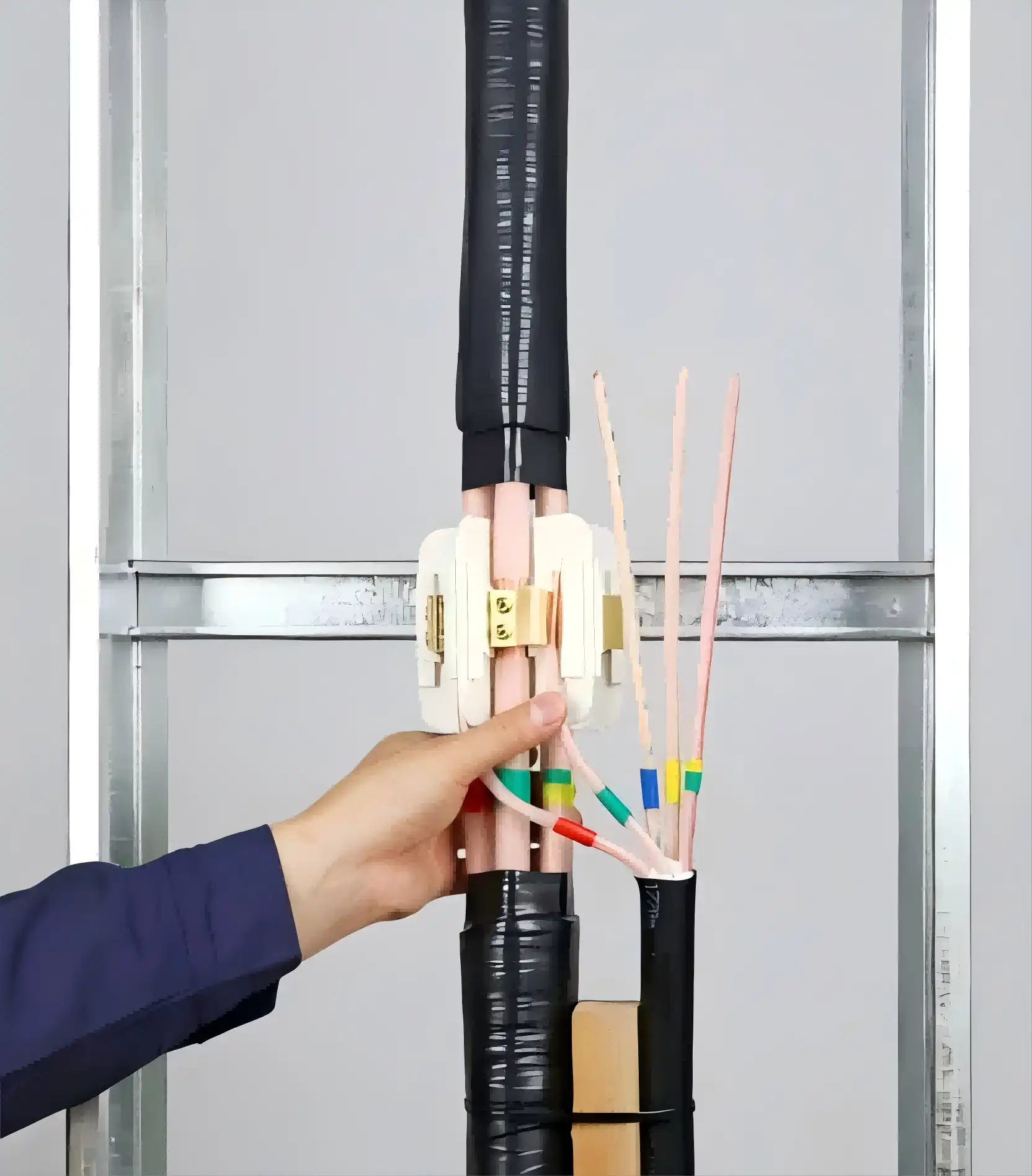

7.Installation of branch cables
8.Snap-on protective housing

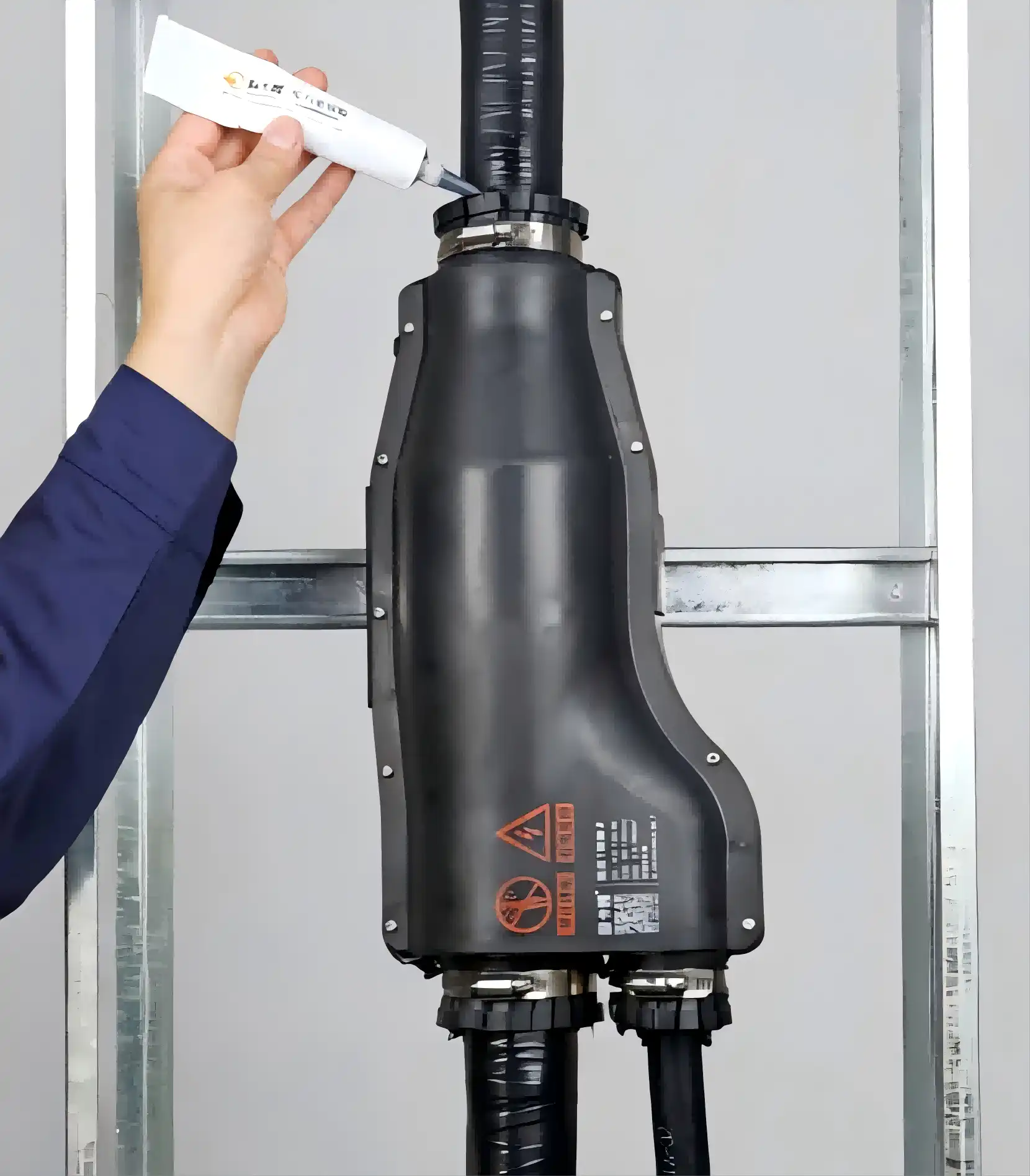

9.Lock and glue the cable outlet
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Technical Parameters
Voltage Drop: <3.2mV
Withstand Voltage: 3.5kV, 5min, no breakdown
Resistance Value: >500MΩ
Protection Level: >IP65
Key Features:
Design: The T-connector allows for three connections: one main input and two branch outputs, resembling the letter "T."
Integrated Components: It often includes built-in features such as insulation, strain relief, and sealing, which help protect against environmental factors like moisture and dirt.
Ease of Installation: the joints are designed for straightforward installation, reducing the need for additional components or complex wiring.
Versatility: Suitable for use with different types of cables, such as low-voltage applications.
Benefits:
Space Saving: Allows for efficient use of space by consolidating connections.
Enhanced Reliability: Provides secure connections that can withstand various environmental conditions.
Reduced Installation Time: Simplifies the process of cable management and reduces labor costs.
Technical Features
What sets the joints apart from other branch joints is its unique design and technical features. The main cable does not need to be cut off, ensuring a seamless and uninterrupted connection. The main cable and branch cable are connected on the flame-retardant/fire-resistant insulated integrated T-connector body, providing a secure and durable connection.
Composition and Classification

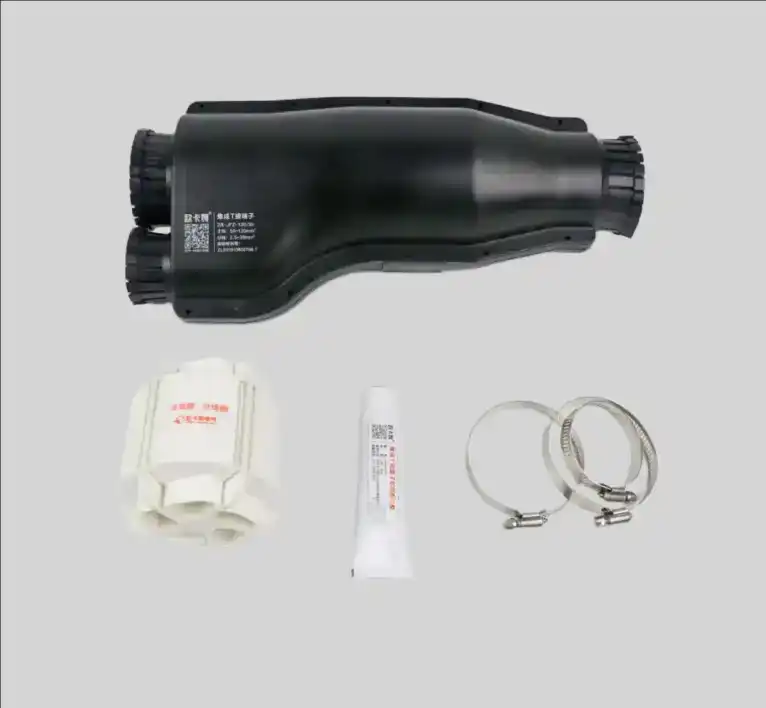

The integrated T-connector consists of the following main components:
Flame-retardant/fire-resistant insulated T-connector body
Sealing cover
Waterproof and dustproof sealing ring
Stainless steel screws
The branch joints are classified based on the number of cores and cross-sectional area of the main and branch cables. They are available in various specifications to cater to different project requirements.
Branch Joints Application Fields
The joints is a versatile solution for cable branch connections in various fields, including:
- High-rise buildings
- Subway stations
- Tunnels
- Industrial plants
- Data centers
- Hospitals
- Schools
- Shopping malls
Its reliability, safety, and efficiency make it an ideal choice for any project that requires cable branch connections.
Packaging and Transportation
To ensure the joints remain in perfect condition during transportation and storage, they are packaged in sturdy, moisture-proof boxes. Each box is clearly labeled with the product specifications and quantity for easy identification and inventory management.
Contact Us
If you have any questions or would like to learn more about our Branch Joints, please don't hesitate to contact us at info@okmbranchcable.com. Our knowledgeable team is always ready to assist you in finding the best solution for your cable connection needs.
