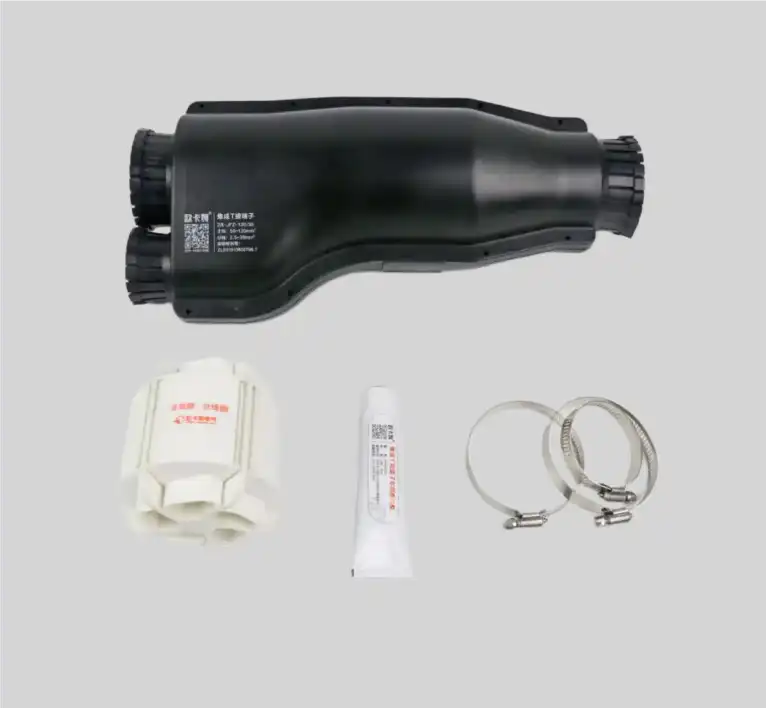

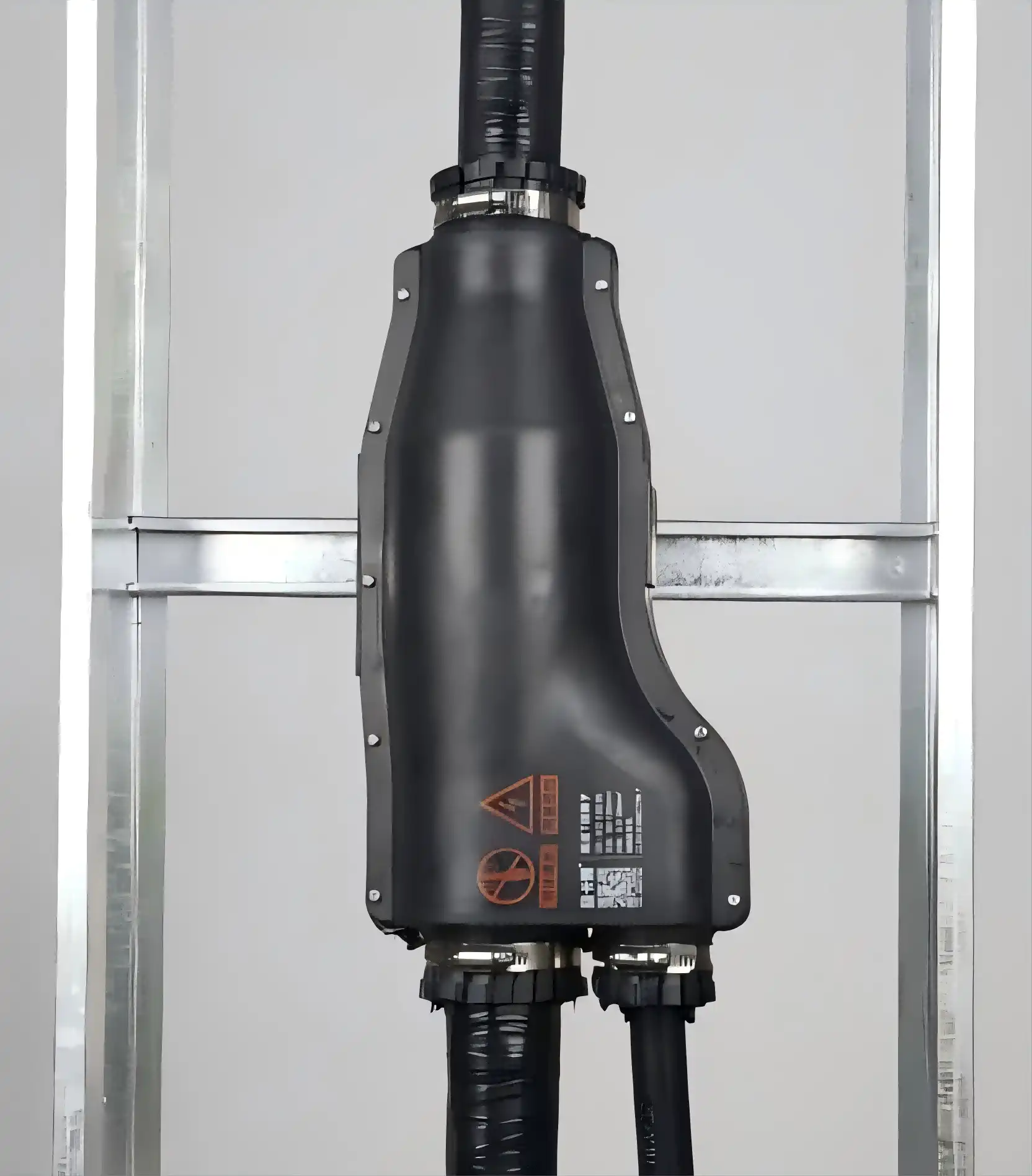

Branch Cable Joint
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 25~70mm, branch cable 2.5~35mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance
Branch Cable Joint Introduction
Welcome to the future of cable connections with Xi'an OUKAMU's innovative Branch Cable Joint. Launched in 2015, our integrated T-connector represents a groundbreaking advancement in cable branch connection technology. Designed for efficiency, safety, and aesthetic appeal, this product simplifies the process of connecting multi-core main and branch cables on-site. Whether you're working with insulated waterproof, low-voltage flame-retardant, fire-resistant, or mineral-insulated fire-resistant cables, our cable joint offers a reliable solution to your connection needs.

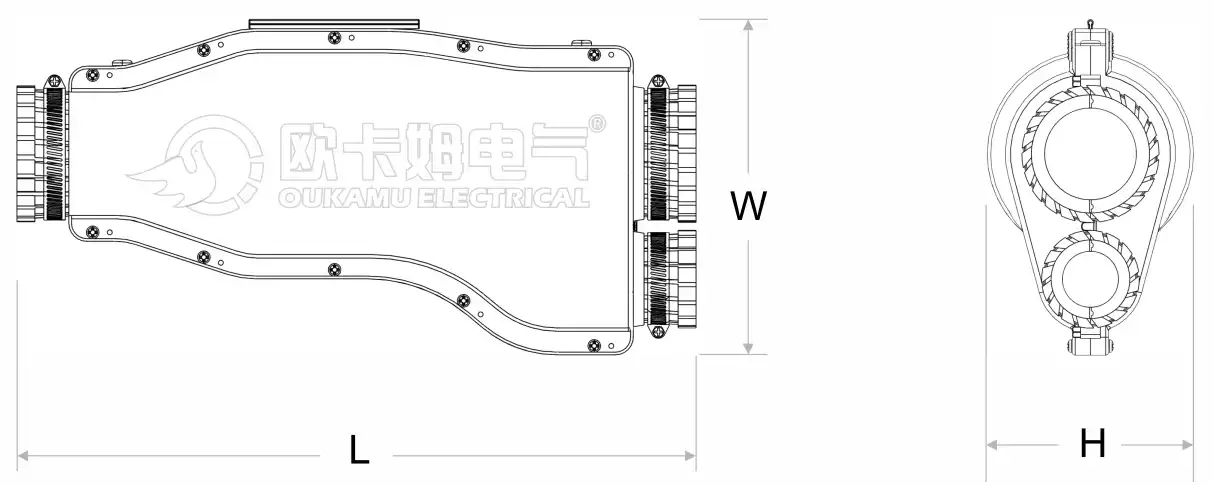

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

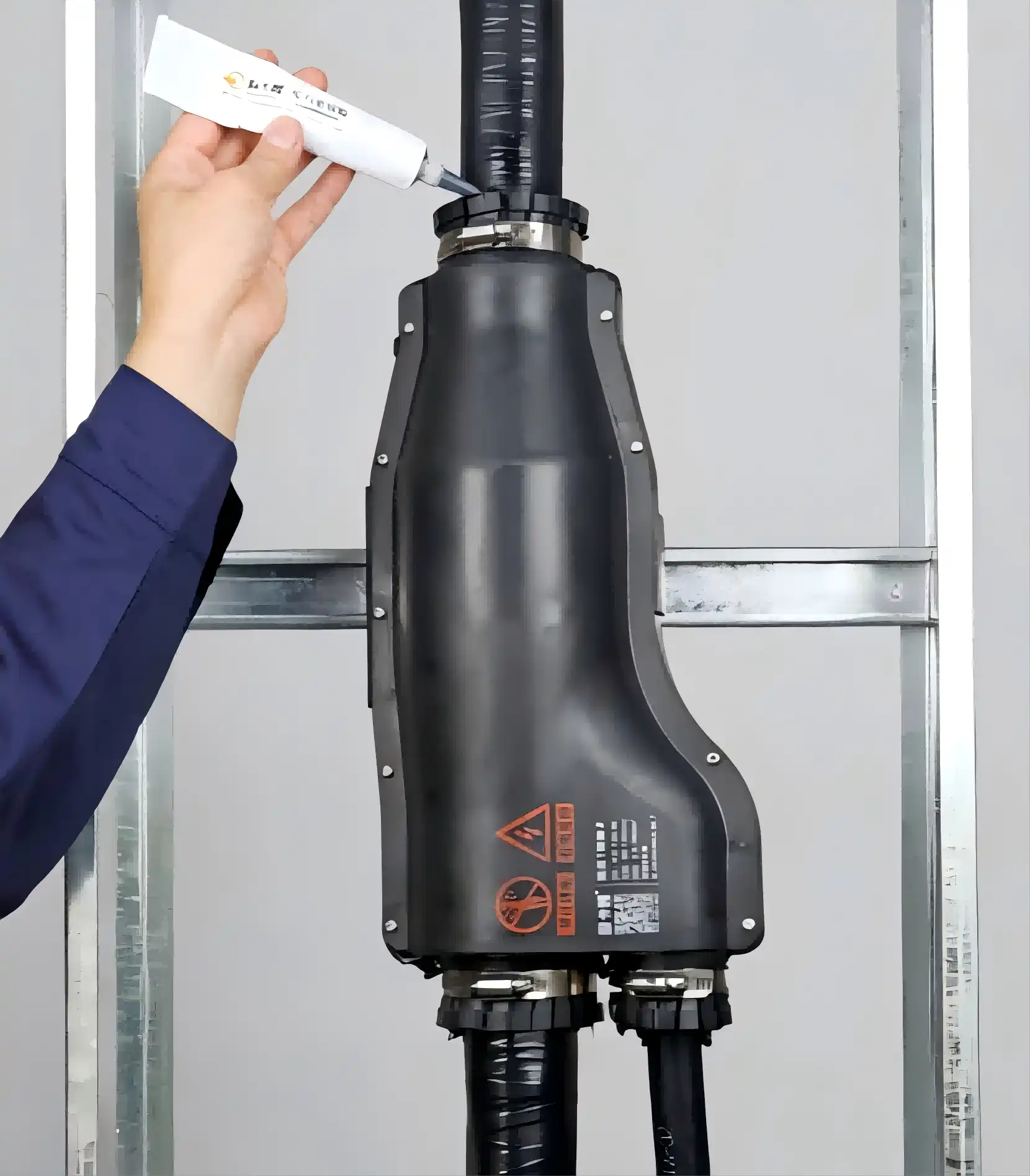

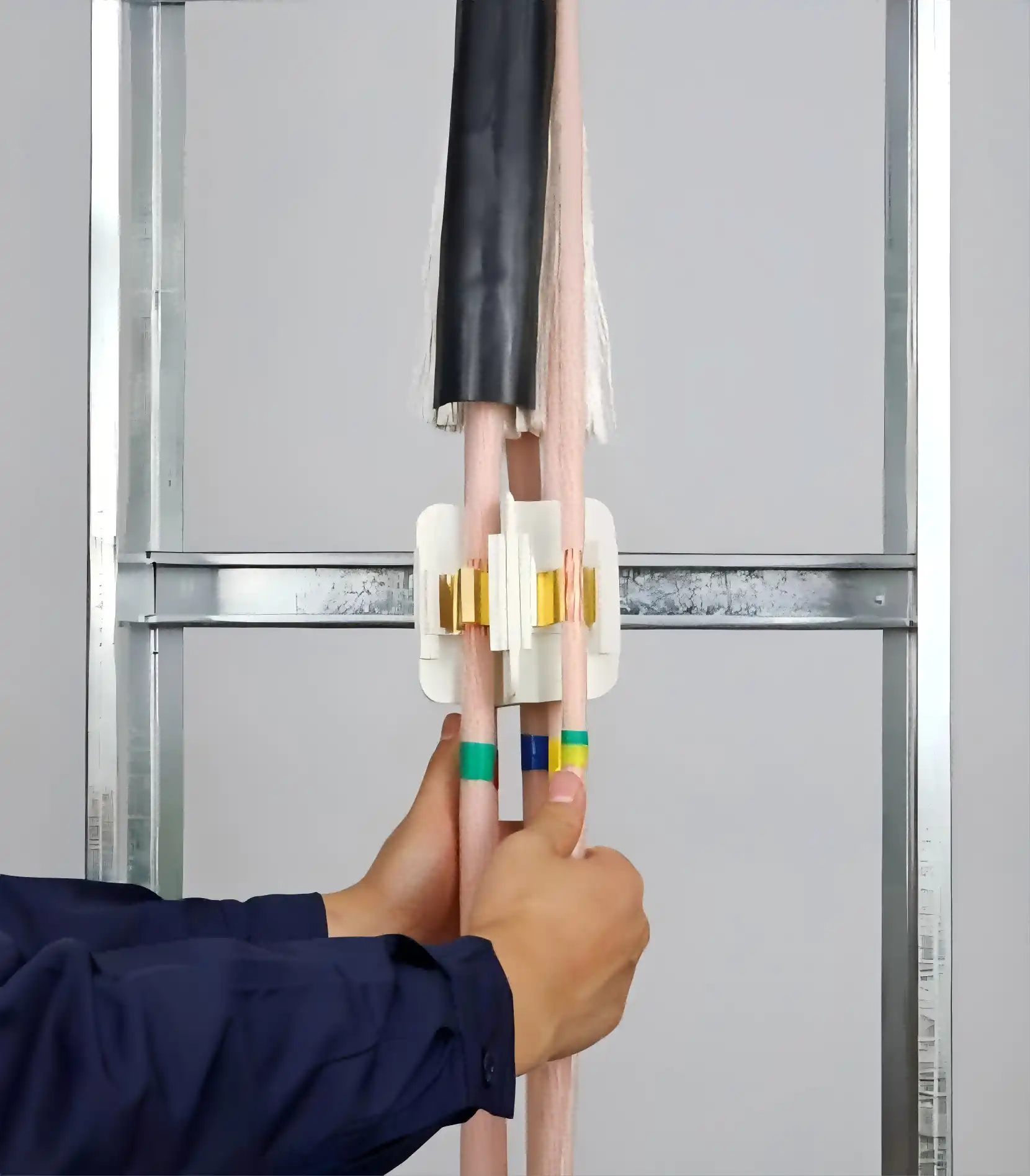

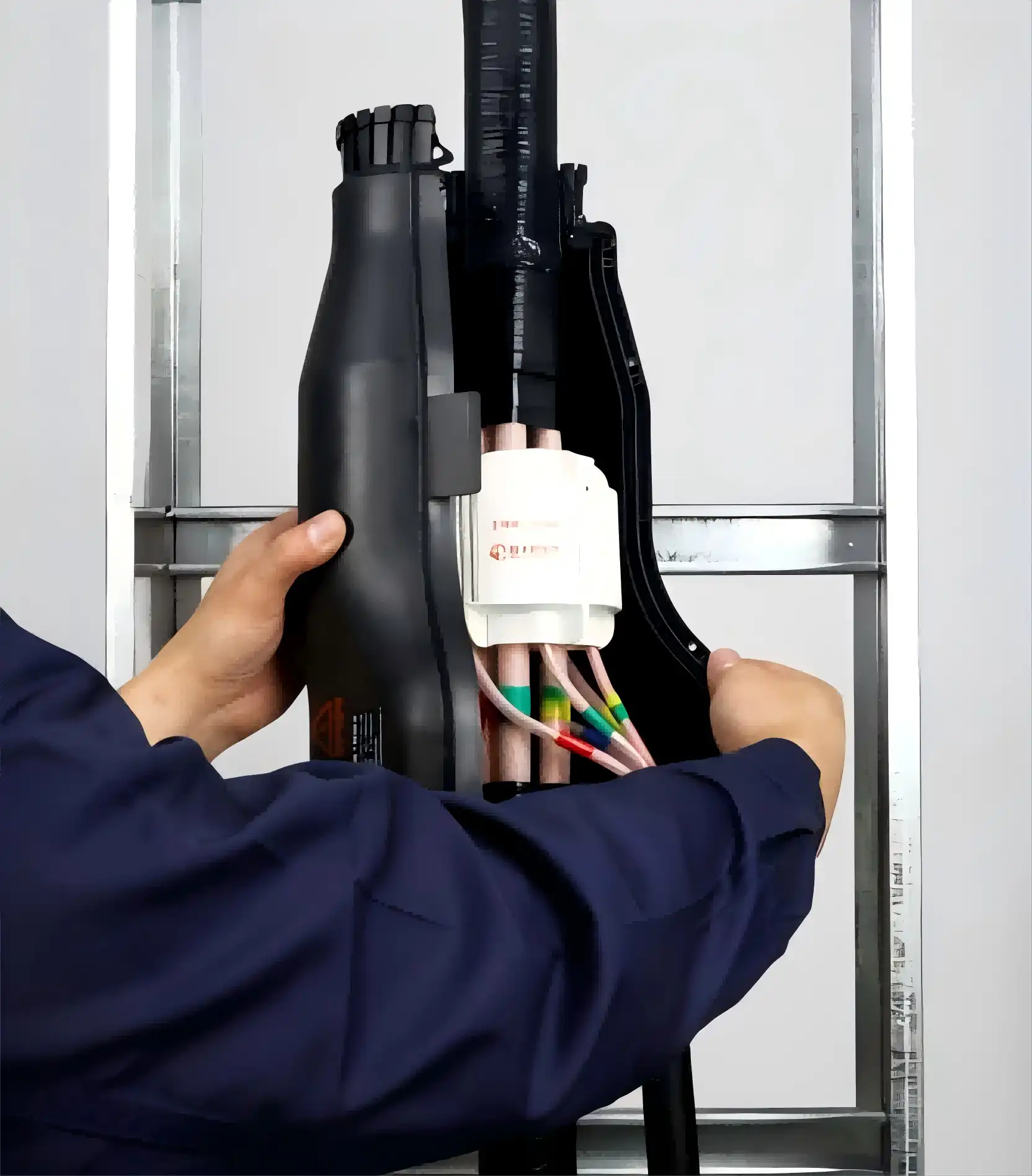

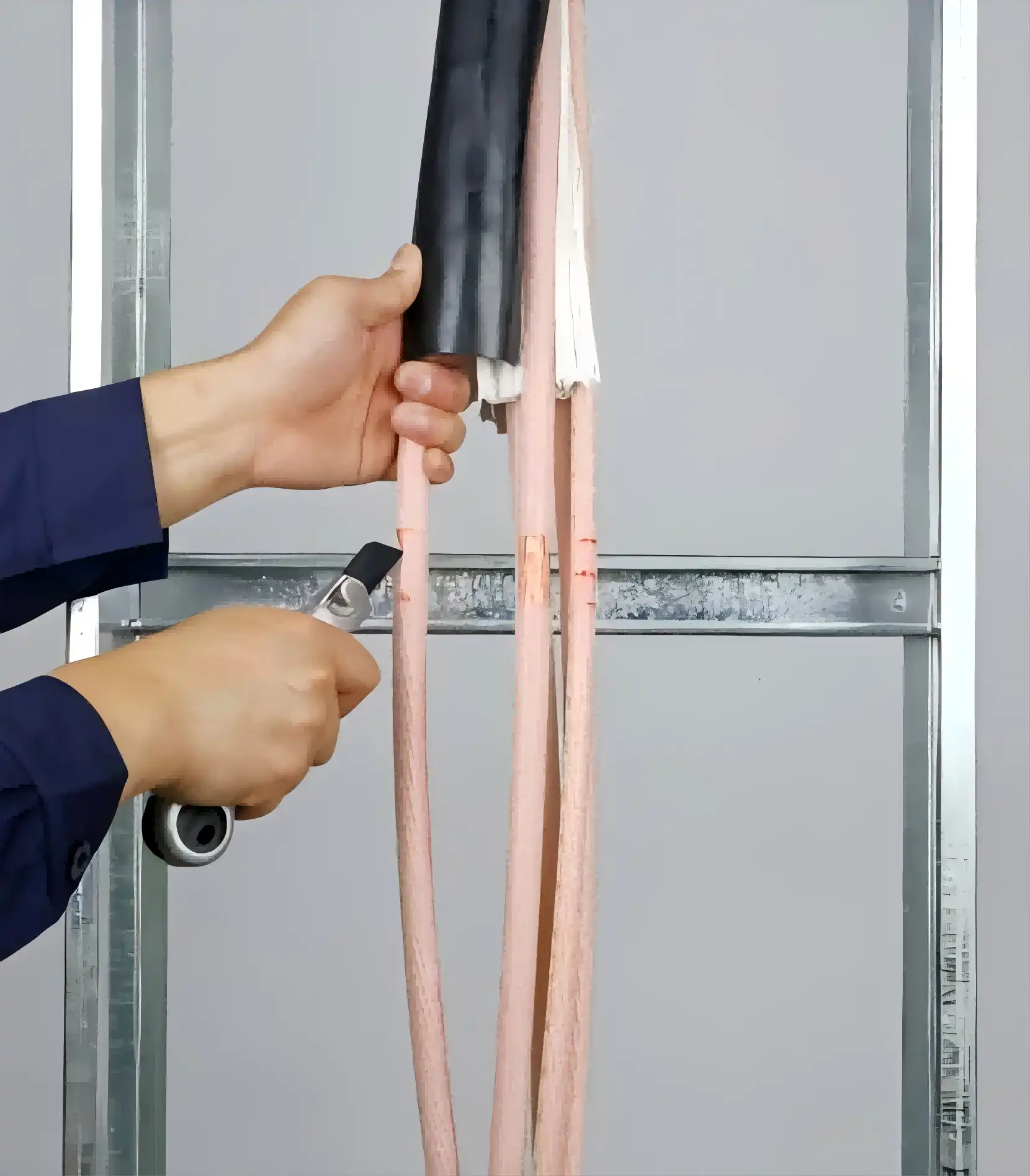

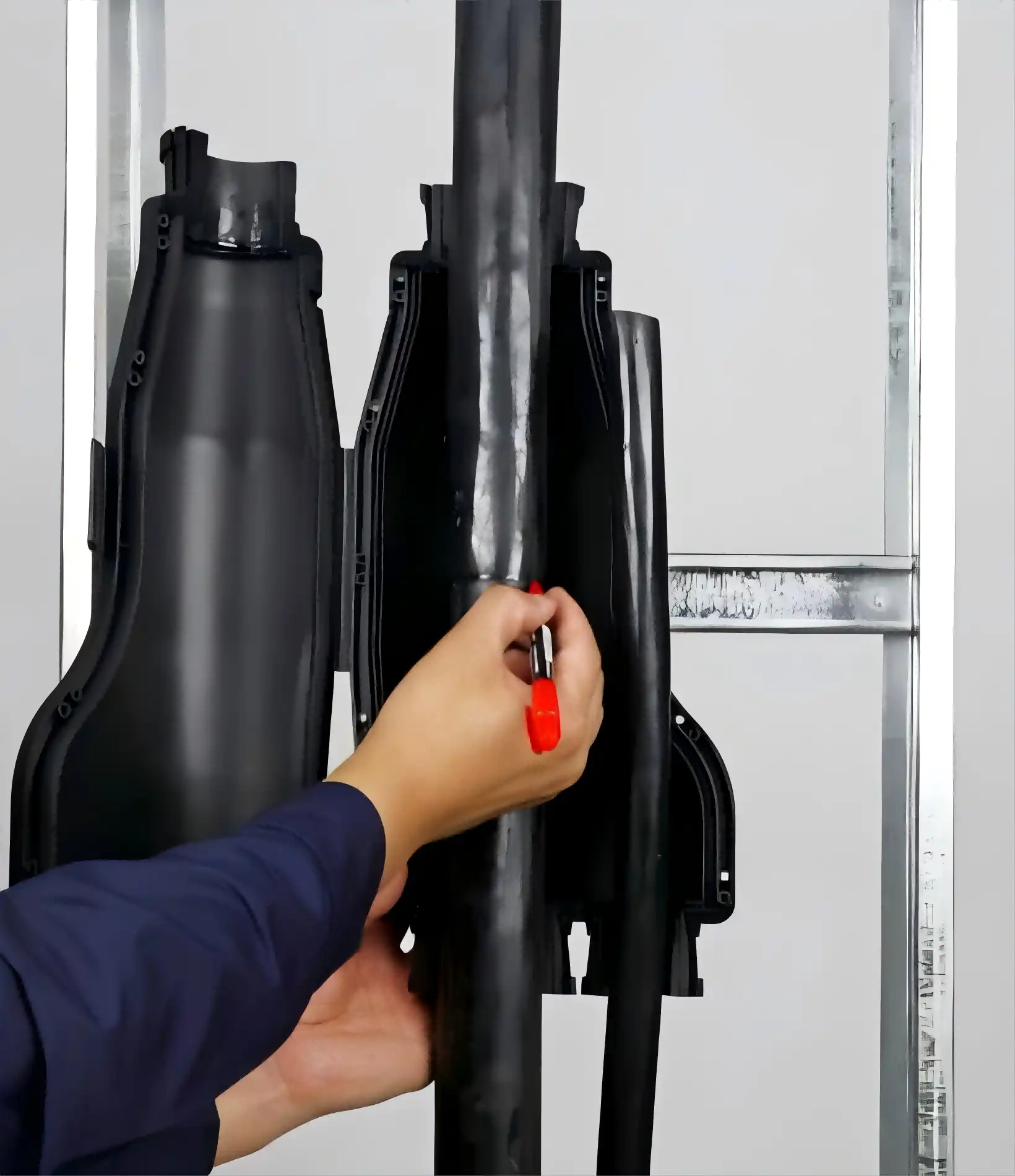

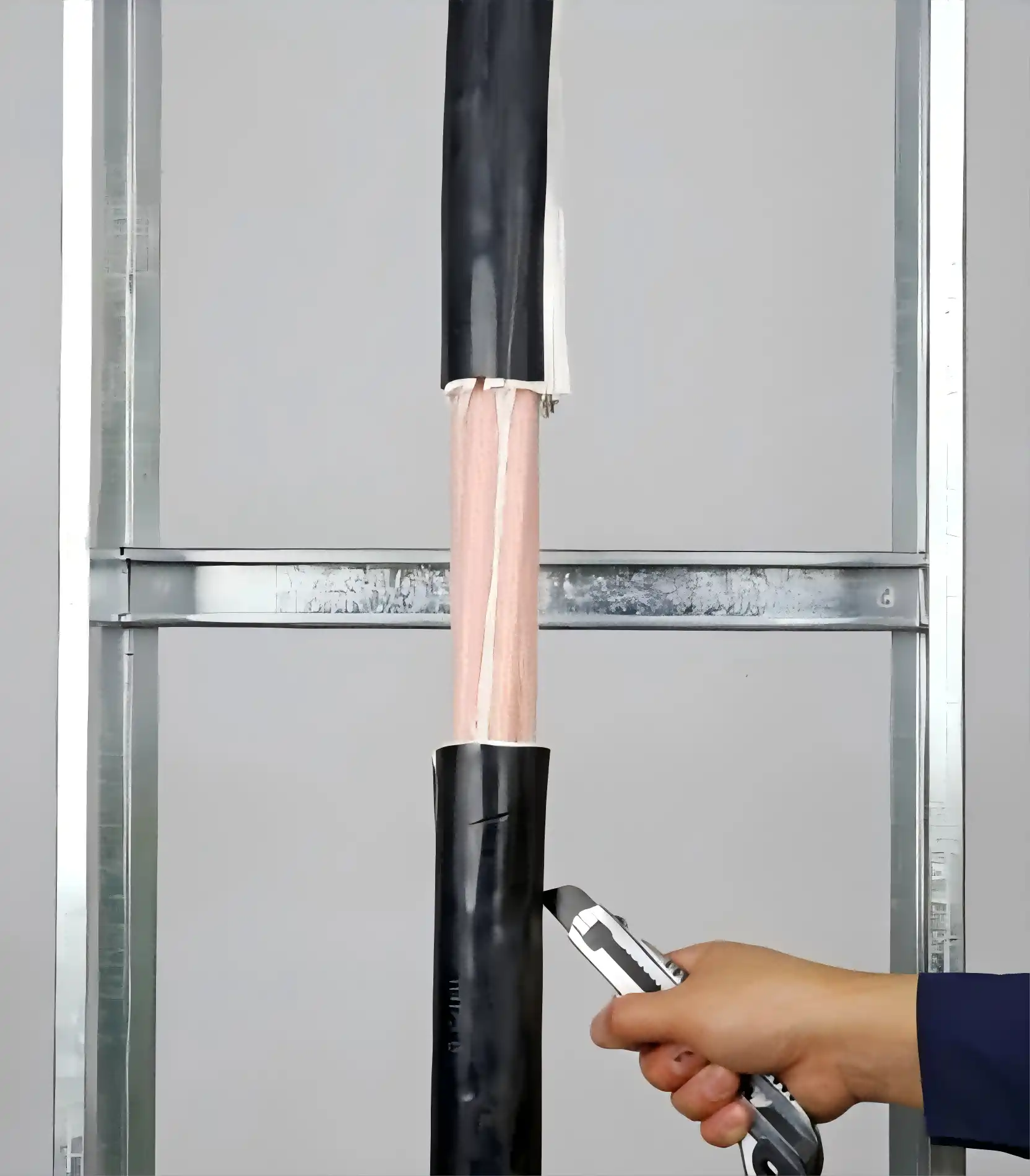

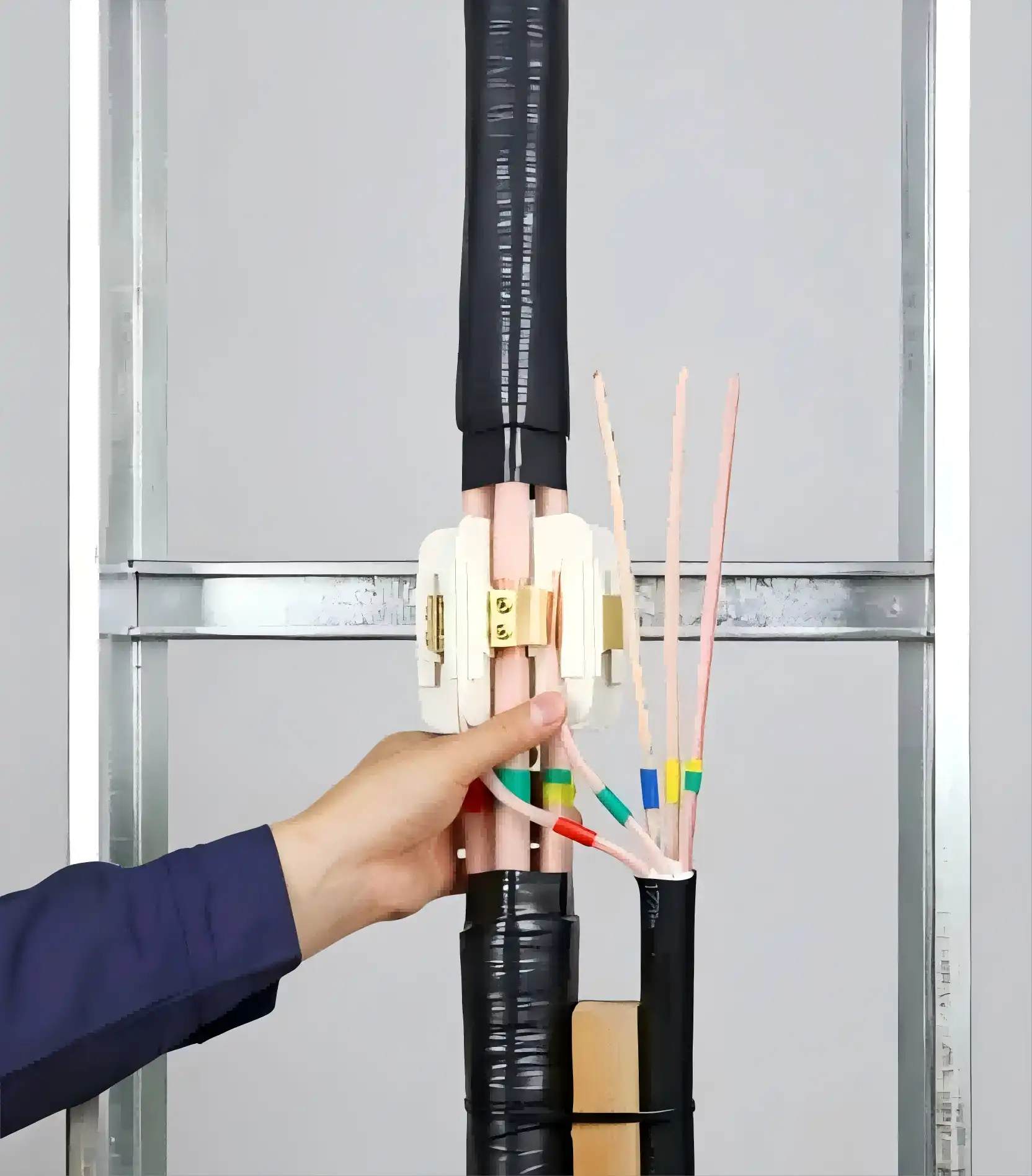

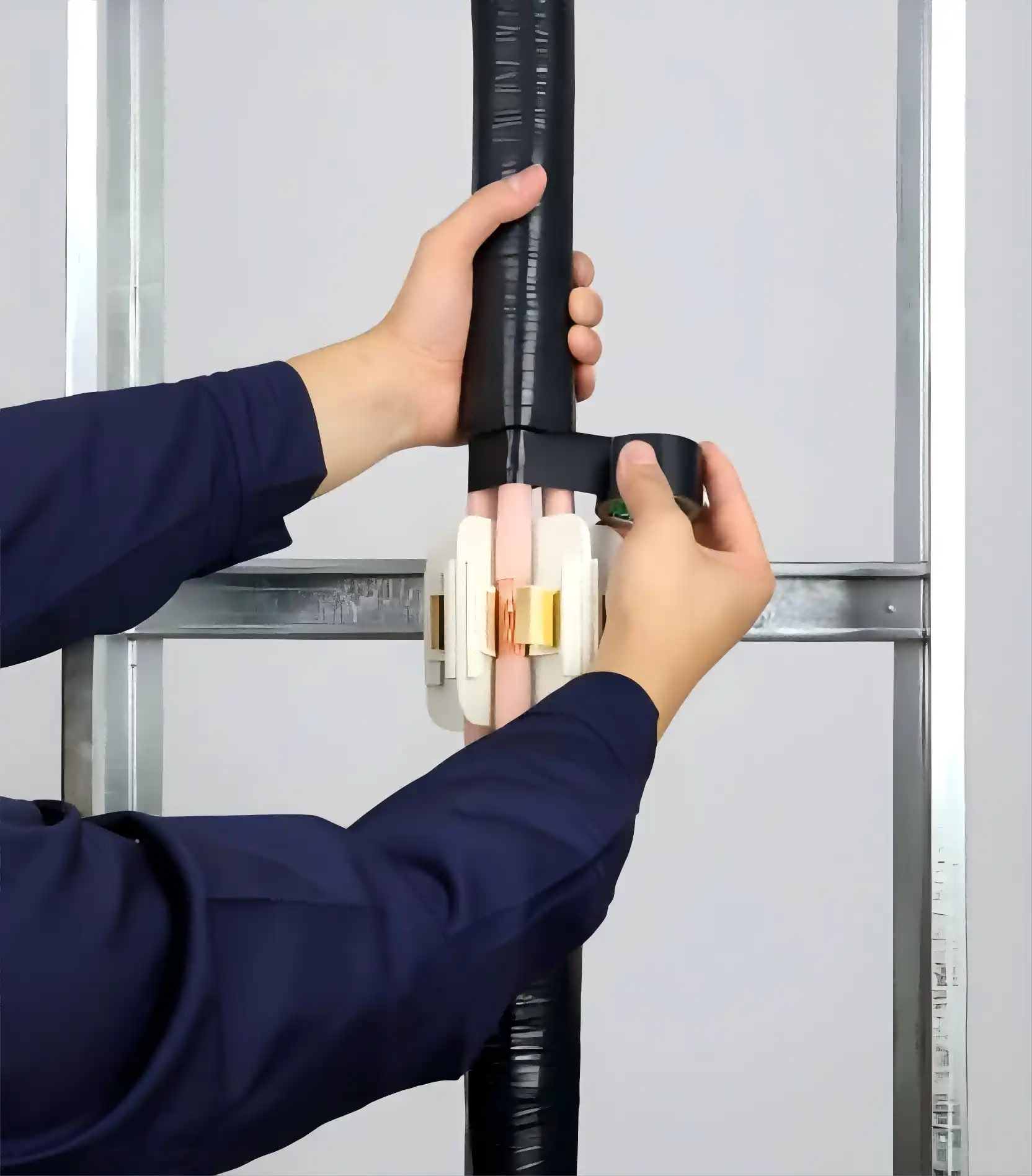

Installation Steps
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Advantages
On-Site Installation Flexibility
The product is engineered for ease of installation. It allows for branch connections at any position without the need to cut off the main cable, making it ideal for both new installations and maintenance tasks. This feature streamlines your work, saving time and reducing labor costs.
Integrated and Aesthetic Design
Our connector boasts an integrated design that not only ensures safety and reliability but also offers a clean, professional appearance. Its compact structure fits seamlessly into both open and bridge installations, enhancing the overall look of your setup.
Versatility and Reusability
Designed to be installed openly or within a bridge, the cable joint is versatile enough to meet various installation requirements. Its reusable nature further reduces long-term costs, as it can be easily maintained and reinstalled as needed.
Superior Protection
Built to withstand harsh conditions, this connector is insulated waterproof, flame-retardant, fire-resistant, dustproof and resistant to aging and electrochemical corrosion. This robust protection ensures long-lasting performance and reliability in demanding environments.
Cost Efficiency
By saving cable space, reducing building area requirements, and cutting down on labor, the cable joint offers significant cost savings. Its overall low cost makes it an economical choice for various applications.
Technical Features
- Non-Interruptive Connection: The main cable remains intact, avoiding interruptions during connection.
- Integrated Design: The main and branch cables connect directly on the insulated waterproof/flame-retardant/fire-resistant insulated body of the T-connector.
- Comprehensive Insulation: The branch cable is fully insulated and sealed, providing complete protection.
Application
The Branch Cable Joint is versatile and suitable for use in a range of applications involving insulated waterproof, low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables. Its design makes it ideal for use in various industries, including construction, manufacturing, and infrastructure, where reliable and efficient cable connections are essential.
OEM Service
At Xi'an OUKAMU, we offer customized solutions to meet your specific needs. Our OEM services ensure that you receive a product tailored to your exact requirements. Whether you need modifications to the standard design or custom packaging, our team is here to support you.
FAQ
Q1: What types of cables can the cable joint be used with?
A1: The Branch Cable Joint is designed for use with insulated waterproof, low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Q2: Can the cable joint be used in both new installations and maintenance projects?
A2: Yes, the product is suitable for both new installations and maintenance tasks, offering flexibility and ease of use in various scenarios.
Q3: Is the joint reusable?
A3: Absolutely. The cable joint is designed to be reusable, making it a cost-effective choice for multiple applications.
Q4: What are the environmental protections of the cable joint?
A4: The product provides insulation,waterpfoof, flame retardance, fire resistance, dustproofing and resistance to aging and electrochemical corrosion.
