Cable Resin Filled Type Joints For XLP
Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 25~70mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Cable Resin Filled Type Joints For XLP Introduction
At Xi'an OUKAMU, we specialize in innovative solutions for cable connections, and our Cable Resin Filled Type Joints For XLP are no exception. These joints are designed to provide a reliable and durable connection for XLPE (cross-linked polyethylene) insulated cables, ensuring seamless performance in low voltage applications. Whether you're working on an industrial project or a residential installation, our resin-filled joints offer superior protection and longevity, making them the ideal choice for your cable needs.

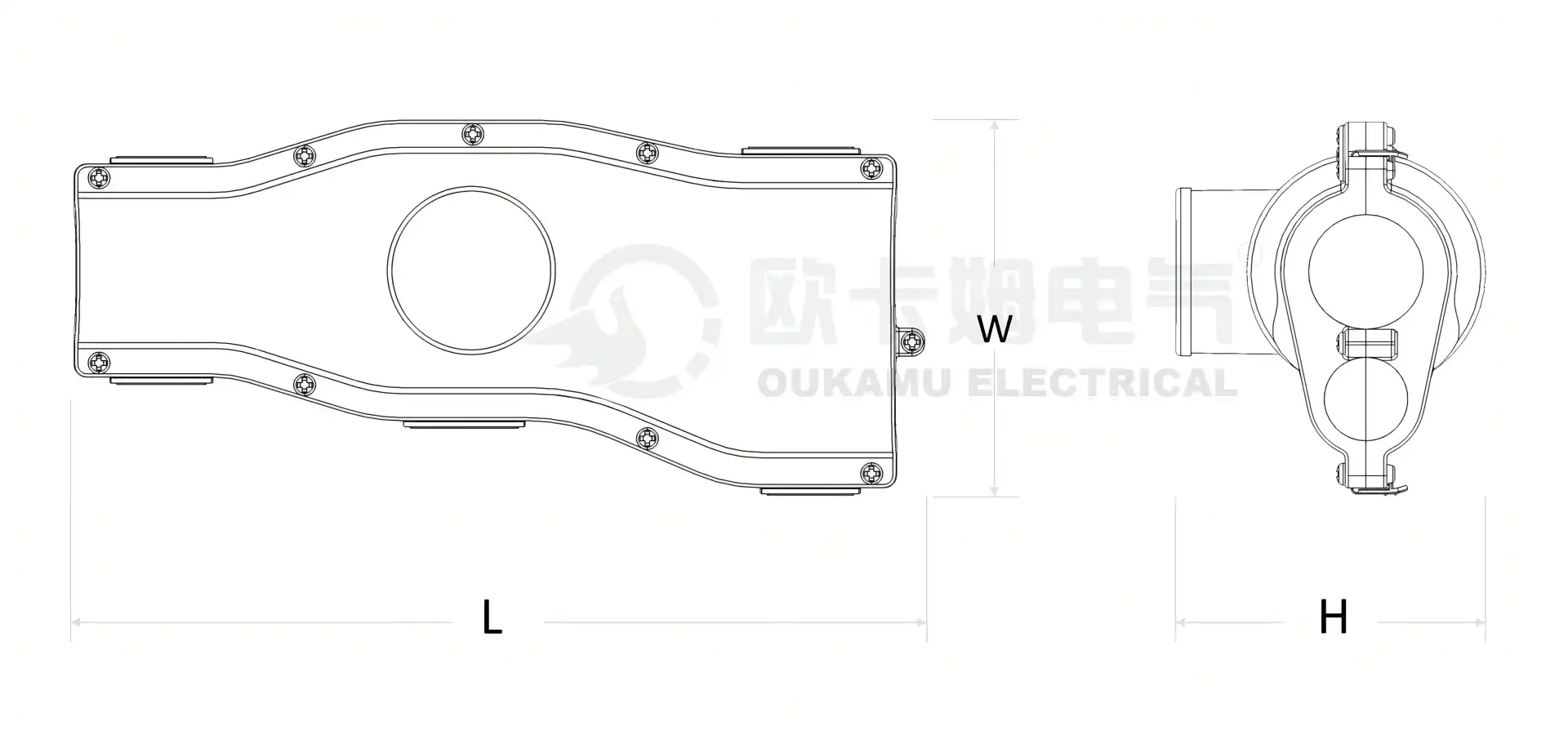

Dimension
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable （2~5 Cores） |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Technical Parameters
Understanding the technical specifics of our Cable Resin Filled Type Joints For XLP is crucial for ensuring they meet your project requirements. Here are the key parameters:
- Insulation Resistance Value: >1000MΩ
- Withstand Voltage: 3.5kV, 5min, no breakdown
- Voltage Drop: <3.2mV
- Waterproof Level: IP68
- Compatibility: Suitable for all PVC-insulated cables
- Insulation Material: High-quality resin that provides excellent electrical insulation and mechanical protection.
These parameters are meticulously designed to ensure that our cable joints deliver optimal performance in various environmental conditions.
Technical Features
Our Cable Resin Filled Type Joints For XLP are packed with technical features that set them apart:
- High Insulation Integrity: The resin used in our joints is formulated to provide superior electrical insulation, minimizing the risk of electrical faults.
- Mechanical Protection: The joints are designed to protect the cables from mechanical stresses, ensuring long-term durability.
- Ease of Installation: The resin-filled joints are user-friendly and can be installed quickly, reducing labor costs and time.
- Chemical Resistance: The joints are resistant to a wide range of chemicals, ensuring longevity even in harsh environments.
These features make our resin-filled joints a top choice for professionals who prioritize safety, reliability, and efficiency in their cable installations.
Composition and Classification
Our Cable Resin Filled Type Joints For XLP are composed of the following components:
- Resin: A specially formulated insulating resin that fills the joint, providing both electrical insulation and mechanical protection.
- Insulation Waterproof Glue: Two-component, yellow, translucent, insulating, flame retardant, flexible.
- Glue Filling Branch Box: High quality modified PP plastic, anti-aging, cold and heat resistant, long service life, beautiful and generous.
- Integrated Branch Connector: Insulated, flame retardant, suitable for copper-copper, aluminum-aluminum, copper-aluminum wire connection.
The joints are classified based on their voltage rating and application type, ensuring that you can find the perfect match for your specific needs.
Application Fields
Our product are versatile and suitable for a wide range of applications:
- Industrial Installations: Ideal for connecting high-voltage cables in industrial settings where reliability is paramount.
- Residential Projects: Perfect for underground or overhead cable connections in residential developments.
- Utility Companies: Used by utility companies for maintaining and expanding power distribution networks.
- Renewable Energy: Suitable for use in solar and wind power installations, where long-term reliability is essential.
These joints provide the flexibility and durability required for both standard and specialized cable connection tasks.
Packaging and Transportation
We understand the importance of safe and secure packaging, especially for critical components like cable joints. Our Cable Resin Filled Type Joints For XLP are packaged in robust, moisture-proof containers that prevent damage during transportation. Each package includes detailed installation instructions and all necessary accessories, ensuring that you have everything you need for a smooth installation process.
For large orders, we offer customizable packaging solutions to meet your specific needs, ensuring that your products arrive safely and on time, no matter where you are.
Contact Us
Are you ready to upgrade your cable connections with our high-quality Cable Resin Filled Type Joints For XLP? Our team at Xi'an OUKAMU is here to assist you with all your inquiries and orders. Contact us today at info@okmbranchcable.com to learn more about our products and how we can help you achieve seamless cable connections.
