What Are the Types of Cable Joints?

Cable jointing are essential components in electrical systems, connecting cables securely and ensuring efficient power transmission. Understanding the different types of cable joints is crucial for anyone involved in electrical installations, maintenance, or repairs. This blog will explore the various types of cable joints, their applications, and the benefits they offer.

Understanding Cable Jointing

Cable jointing is the process of connecting two or more cables to ensure a continuous electrical connection. This process is vital in both industrial and residential settings, where maintaining the integrity of electrical systems is paramount. Cable joints are designed to handle different voltage levels and environmental conditions, making them a versatile solution for various applications.

The Importance of Proper Cable Jointing

Proper cable jointing is critical to prevent power loss, reduce the risk of electrical faults, and ensure the longevity of the cable system. Inadequate or incorrect jointing can lead to serious issues, such as overheating, short circuits, and even electrical fires. By using high-quality cable joints, such as those developed by Xi'an OUKAMU, you can ensure a reliable and safe electrical connection.

Types of Cable Joints Based on Voltage

Cable joints are classified based on the voltage they are designed to handle. These include:

- Low Voltage (LV) Cable Joints: Used in systems with a voltage rating of up to 1 kV.

- Medium Voltage (MV) Cable Joints: Suitable for systems with voltages ranging from 1 kV to 33 kV.

- High Voltage (HV) Cable Joints: Designed for systems operating above 33 kV.

Environmental Considerations in Cable Jointing

Environmental factors such as moisture, temperature fluctuations, and exposure to chemicals can affect the performance of cable jointing. It is crucial to select the right type of joint for the specific environment in which it will be used. For example, joints used in outdoor or underground installations should be resistant to water and corrosion.

Common Types of Cable Joints

Cable joints come in various forms, each designed to meet specific needs and requirements. Understanding the different types can help you select the right joint for your application.

Straight Joints

Straight joints are used to connect two cables of the same type and size. They are commonly employed in both low and high-voltage applications to extend the length of a cable or repair damaged sections.

- Application in Underground Cables: Straight joints are ideal for underground cable installations, where they provide a secure and waterproof connection.

- Use in Overhead Lines: These joints are also used in overhead lines to connect conductors without interrupting the power supply.

- Advantages: They offer a seamless connection that maintains the integrity of the cable's electrical and mechanical properties.

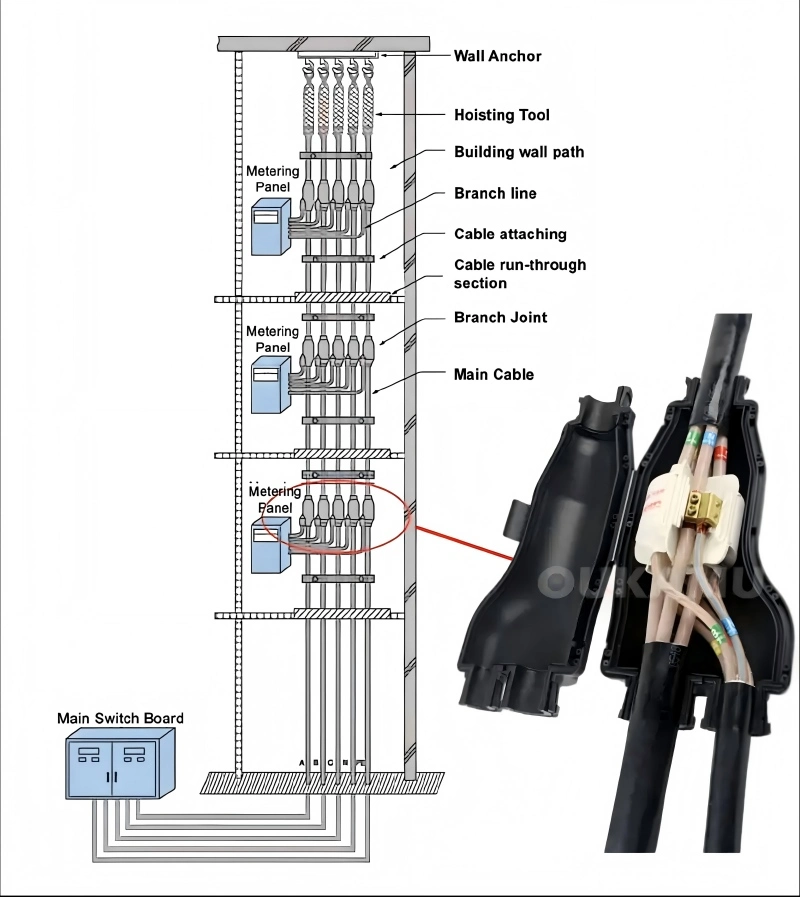

T-Connectors

T-connectors, pioneered by Xi'an OUKAMU, are a unique type of cable jointing used to create a branch connection from a main cable. This allows for the distribution of power to multiple locations from a single source.

- Innovative Design: Xi'an OUKAMU's integrated T-connection terminals are the first of their kind, offering unmatched reliability and ease of installation.

- Applications: T-connectors are commonly used in industrial settings where power needs to be distributed to different areas of a facility.

- Benefits: They simplify the cable installation process and reduce the need for additional connectors or terminals.

Transition Joints

Transition joints are used to connect cables of different types or sizes. These joints are essential in systems where cables with different specifications need to be linked.

- Connecting Different Cable Types: Transition joints can connect different insulation types, such as linking an XLPE-insulated cable to a PILC-insulated cable.

- Adapting to Size Differences: These joints are also used when the cable sizes differ, ensuring a secure and efficient connection.

- Versatility: Transition joints are versatile and can be used in a wide range of applications, from low to high-voltage systems.

Advanced Cable Jointing Techniques

As technology advances, so do the methods and materials used in cable jointing. Understanding these techniques can help you select the best joint for your specific needs.

Cold Shrink Joints

Cold shrink joints are a modern alternative to traditional heat shrink joints. These joints are pre-expanded and installed by simply pulling out a core, allowing the joint to shrink and fit snugly around the cables.

- Ease of Installation: Cold shrink joints are easy to install and do not require heat, making them safer and more convenient, especially in hazardous environments.

- Durability: These joints offer excellent resistance to environmental factors, including moisture and UV radiation.

- Applications: Cold shrink joints are commonly used in medium and high-voltage systems, where reliability and ease of installation are critical.

Heat Shrink Joints

Heat shrink joints are a traditional method of cable jointing, where the joint is shrunk using heat to fit tightly around the cables. This method provides a secure and durable connection.

- Strength and Stability: Heat shrink joints offer a strong bond that can withstand harsh environmental conditions.

- Application in Subsea Cables: These joints are often used in subsea cables, where they provide excellent insulation and protection against water ingress.

- Limitations: While effective, heat shrink joints require specialized equipment for installation, which may not be suitable for all environments.

Resin Joints

Resin joints involve encasing the cable connection in a resin compound, providing excellent insulation and protection against environmental factors.

- Protection Against Water and Chemicals: Resin joints are highly resistant to water, chemicals, and other contaminants, making them ideal for use in harsh environments.

- Application in Underground Installations: These joints are commonly used in underground installations, where they provide long-lasting protection and reliability.

- Ease of Installation: While resin joints offer excellent protection, they can be more time-consuming to install compared to other jointing methods.

Conclusion

Understanding the different types of cable jointing and their applications is essential for anyone involved in electrical installations or maintenance. Xi'an OUKAMU's innovative cable T-connection products offer advanced solutions for secure and reliable connections. By selecting the right type of cable joint, you can ensure the safety and efficiency of your electrical systems.
