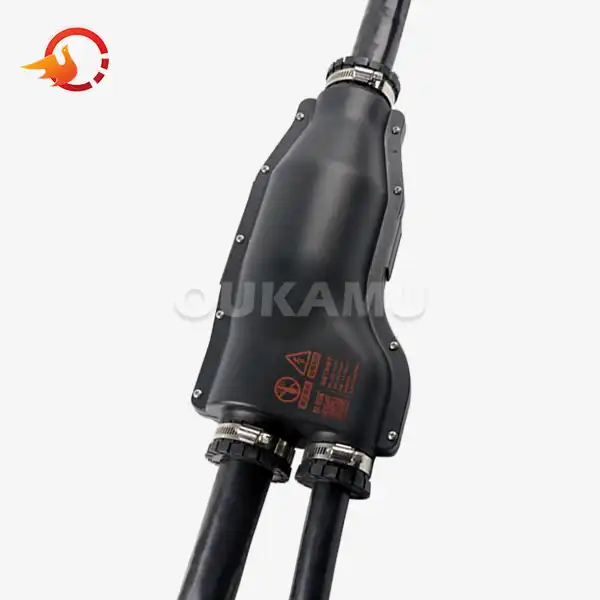

Tunnel Lighting Junction Box
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 4~16mm, branch cable 1.5~10mm.
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance.
Tunnel Lighting Junction Box Introduction
At Xi'an OUKAMU, we understand the importance of reliable and efficient street lighting. That's why we're proud to introduce our Tunnel Lighting Junction Box, a cutting-edge solution designed to provide insulation and waterproof protection for street light switches and wiring. In this article, we'll delve into the features, benefits, and technical parameters of our product, helping you make an informed decision for your street lighting needs.

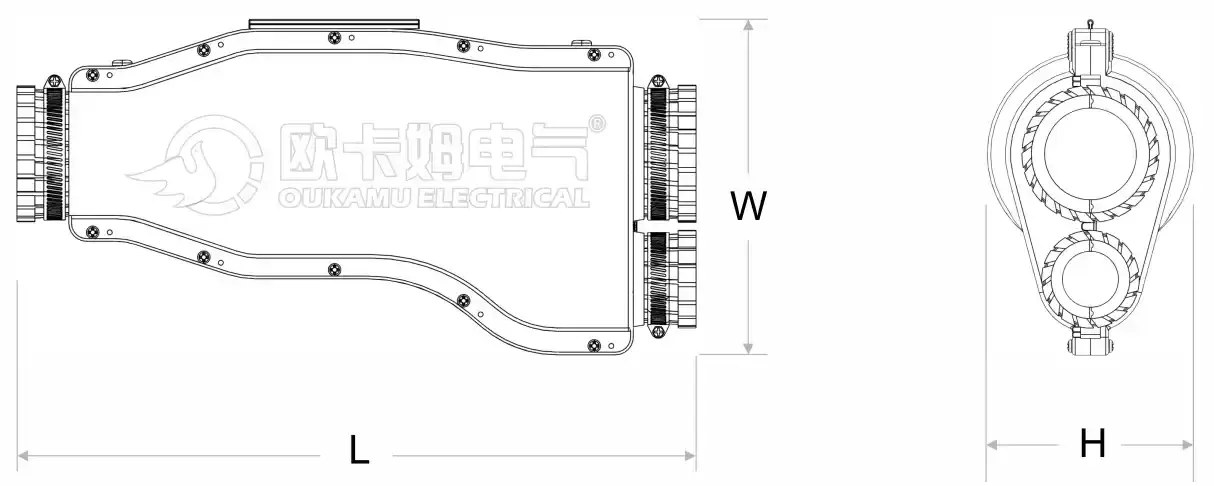

Dimension
Parameters
|
MODEL |
Specification (cross-sectional area of cable core conductors) (mm²) |
Technical Parameters |
||||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage(kV) |
Rated Current(A) |
Size L*W*H(mm) |
||
|
Copper Core |
Aluminum Alloy Core |
|||||
|
ZR-JFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
72 |
/ |
260*105*65 |
|
ZR-JFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
76 |
325*140*75 |
|
ZR-JFZ-70/35 |
25~70 |
2.5~35 |
0.6/1 |
150 |
120 |
365*170*105 |
|
ZR-JFZ-95/35 |
35~95 |
2.5~35 |
0.6/1 |
150 |
120 |
375*175*110 |
|
ZR-JFZ-120/35 |
50~120 |
2.5~35 |
0.6/1 |
150 |
120 |
380*180*115 |
|
ZR-JFZ-150/50 |
50~150 |
6~50 |
0.6/1 |
190 |
152 |
425*185*115 |
|
ZR-JFZ-185/35 |
70~185 |
2.5~35 |
0.6/1 |
150 |
120 |
430*190*120 |
|
ZR-JFZ-95/70 |
35~95 |
16~70 |
0.6/1 |
240 |
190 |
440*190*120 |
|
ZR-JFZ-240/70 |
95~240 |
6~70 |
0.6/1 |
240 |
190 |
460*210*130 |
|
ZR-JFZ-185/95 |
70~185 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-300/95 |
120~300 |
10~95 |
0.6/1 |
290 |
230 |
515*230*140 |
|
ZR-JFZ-240/120 |
95~240 |
50~120 |
0.6/1 |
340 |
280 |
520*240*145 |

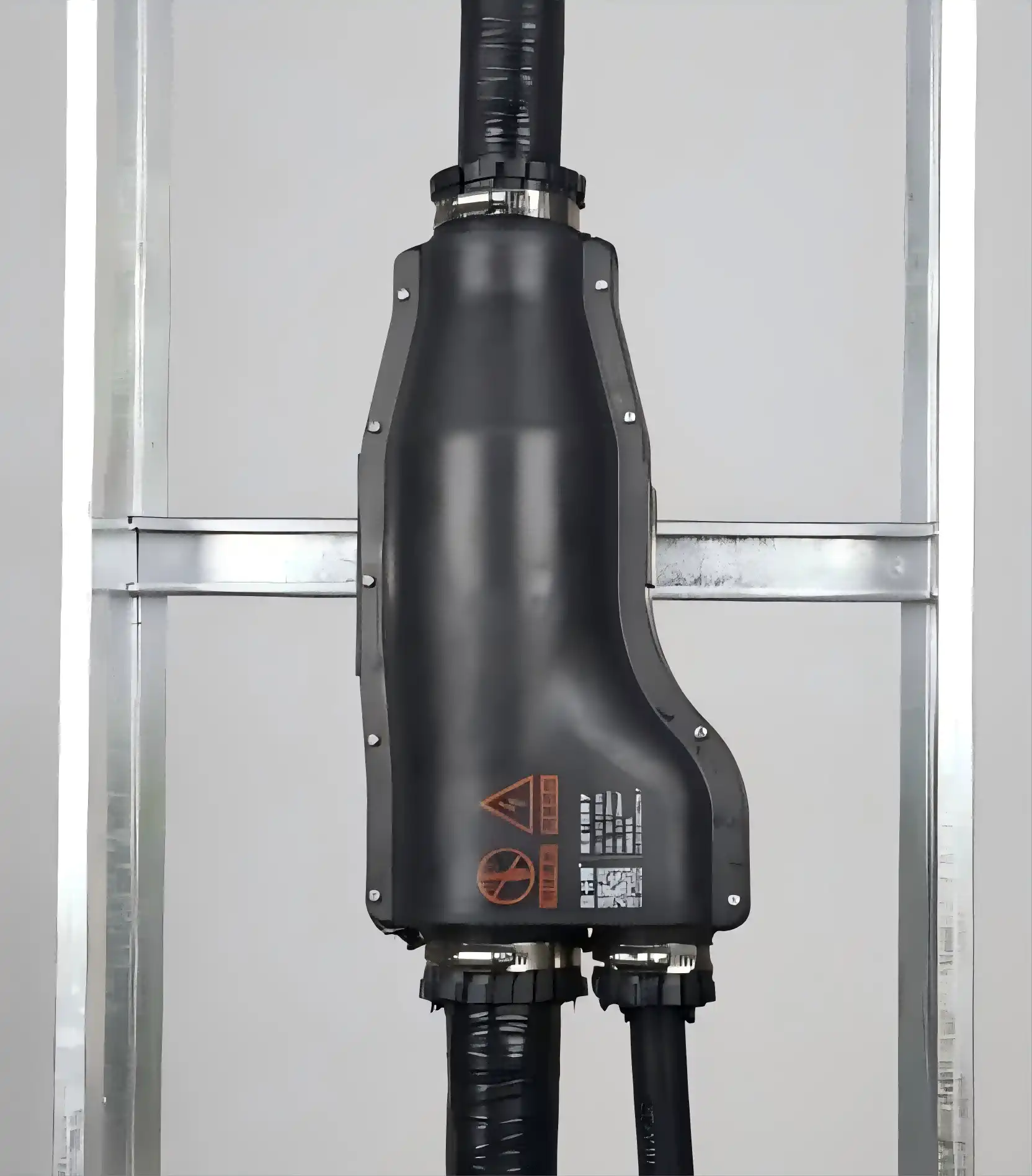

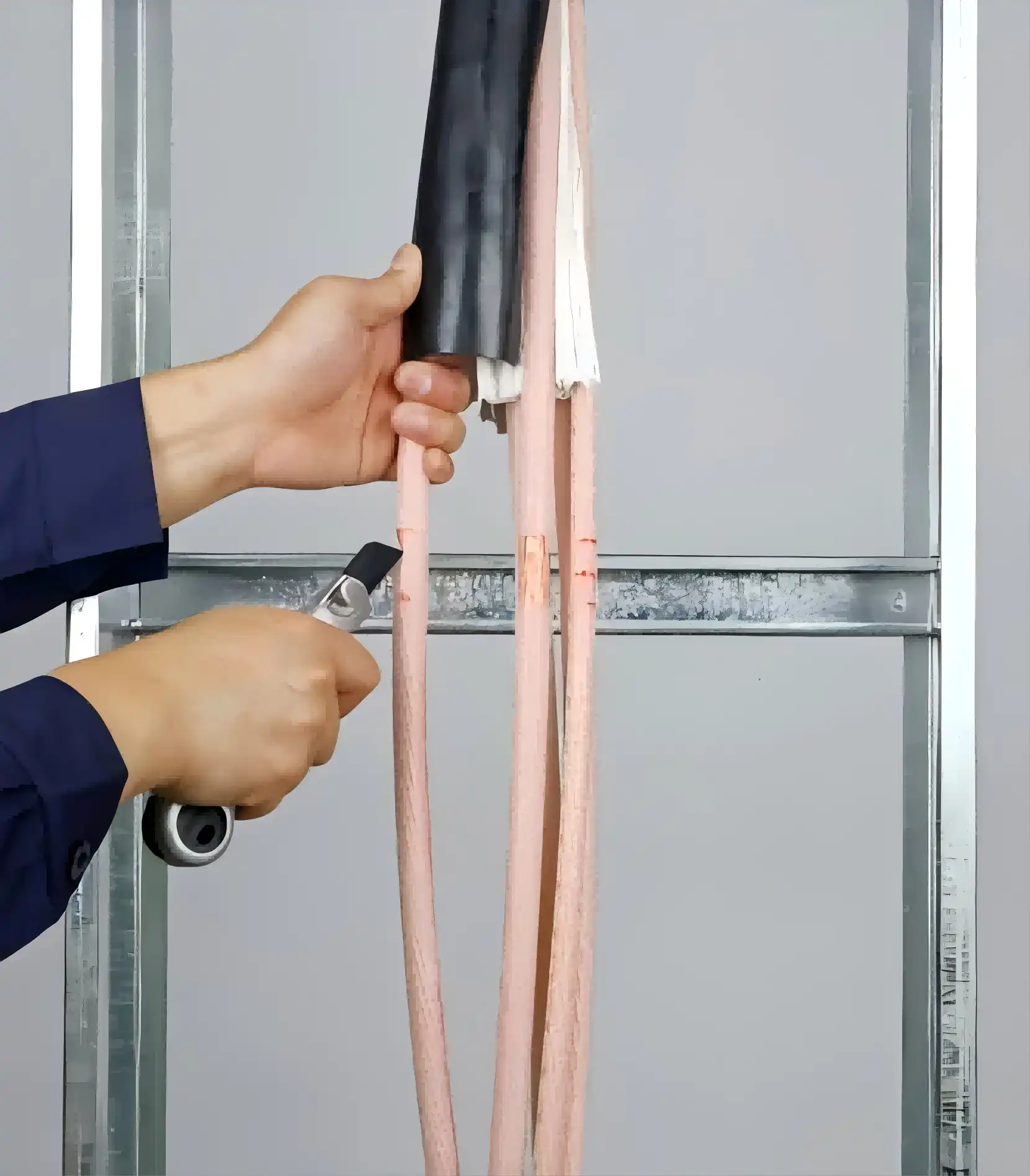

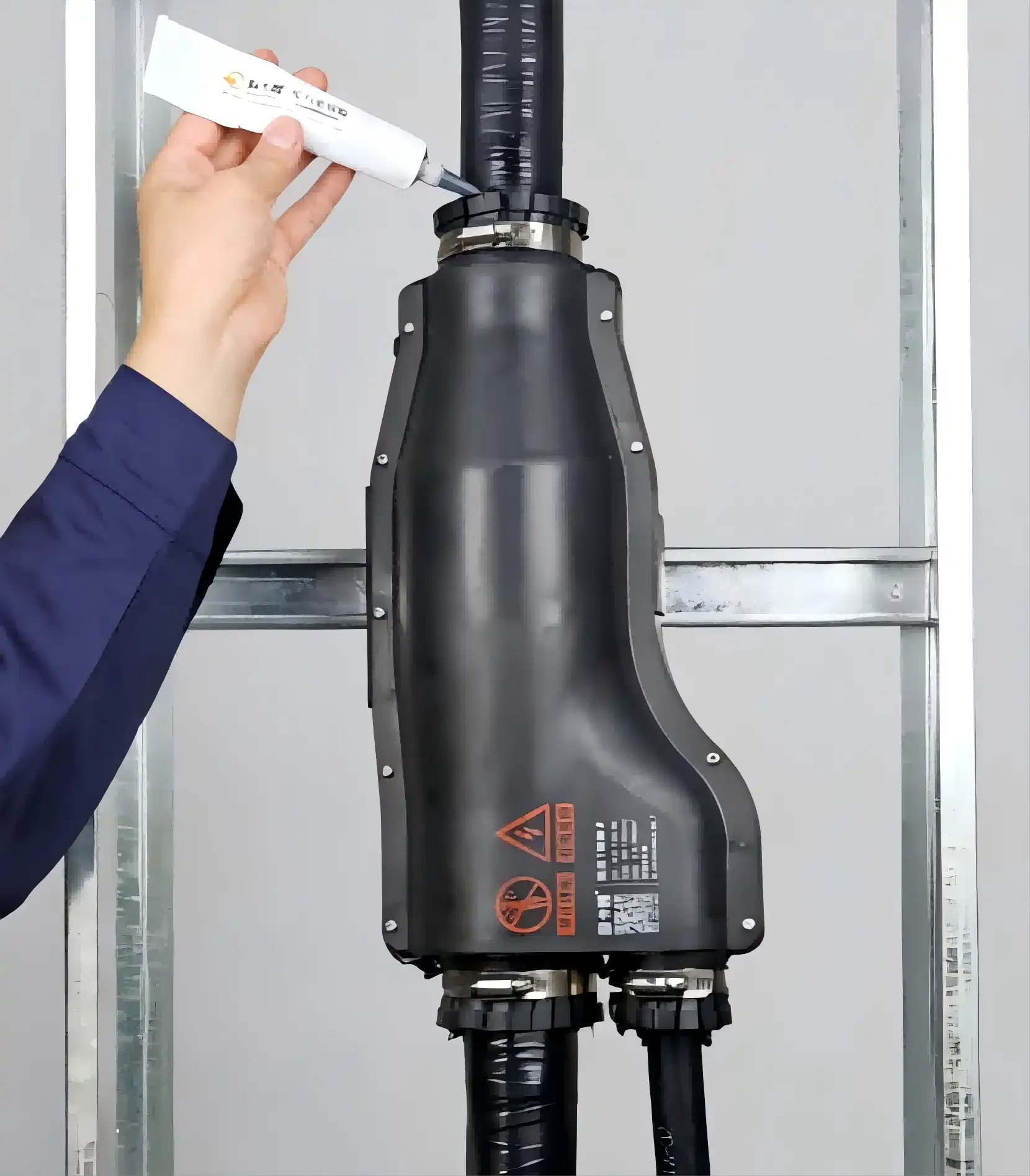

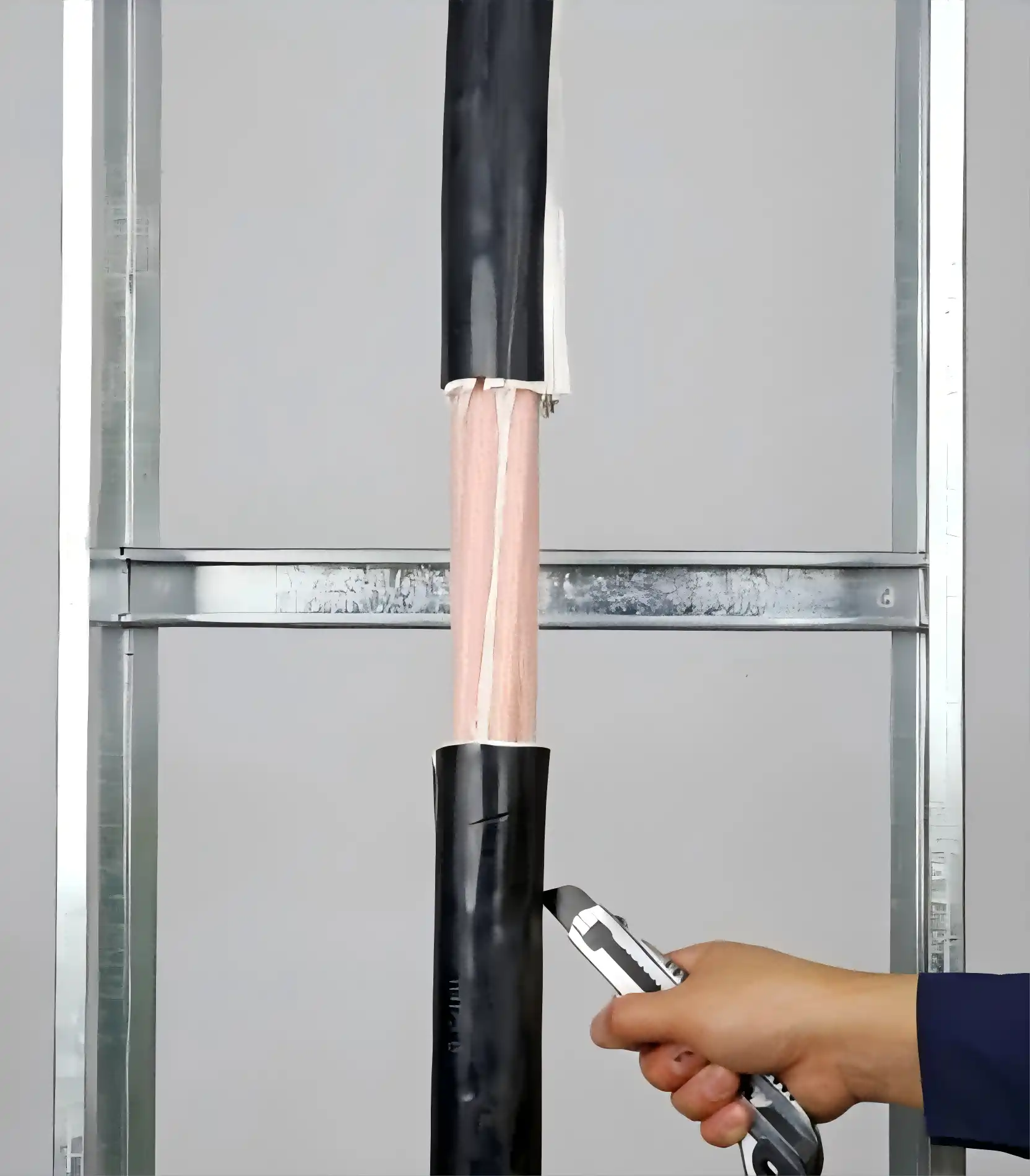

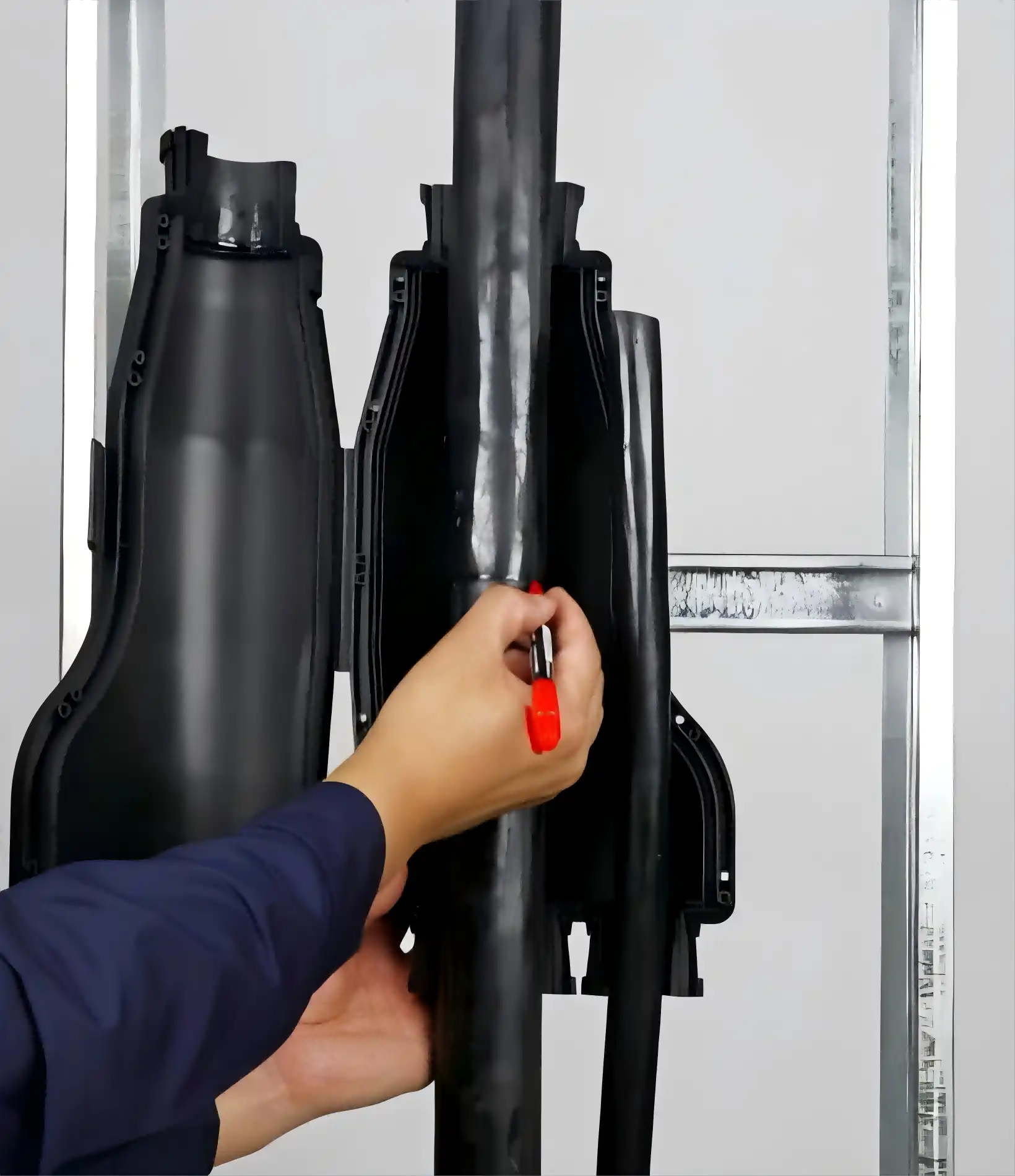

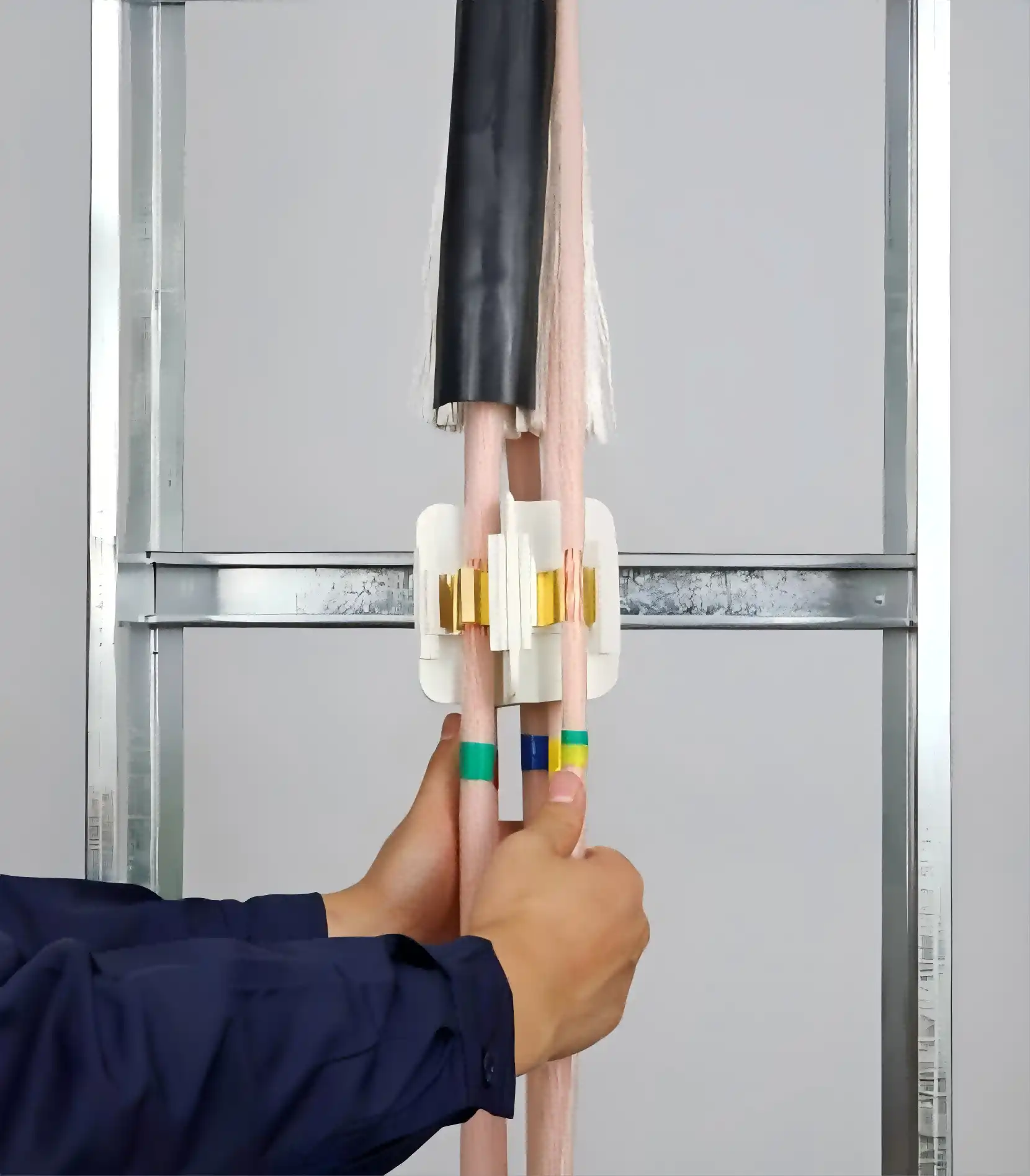

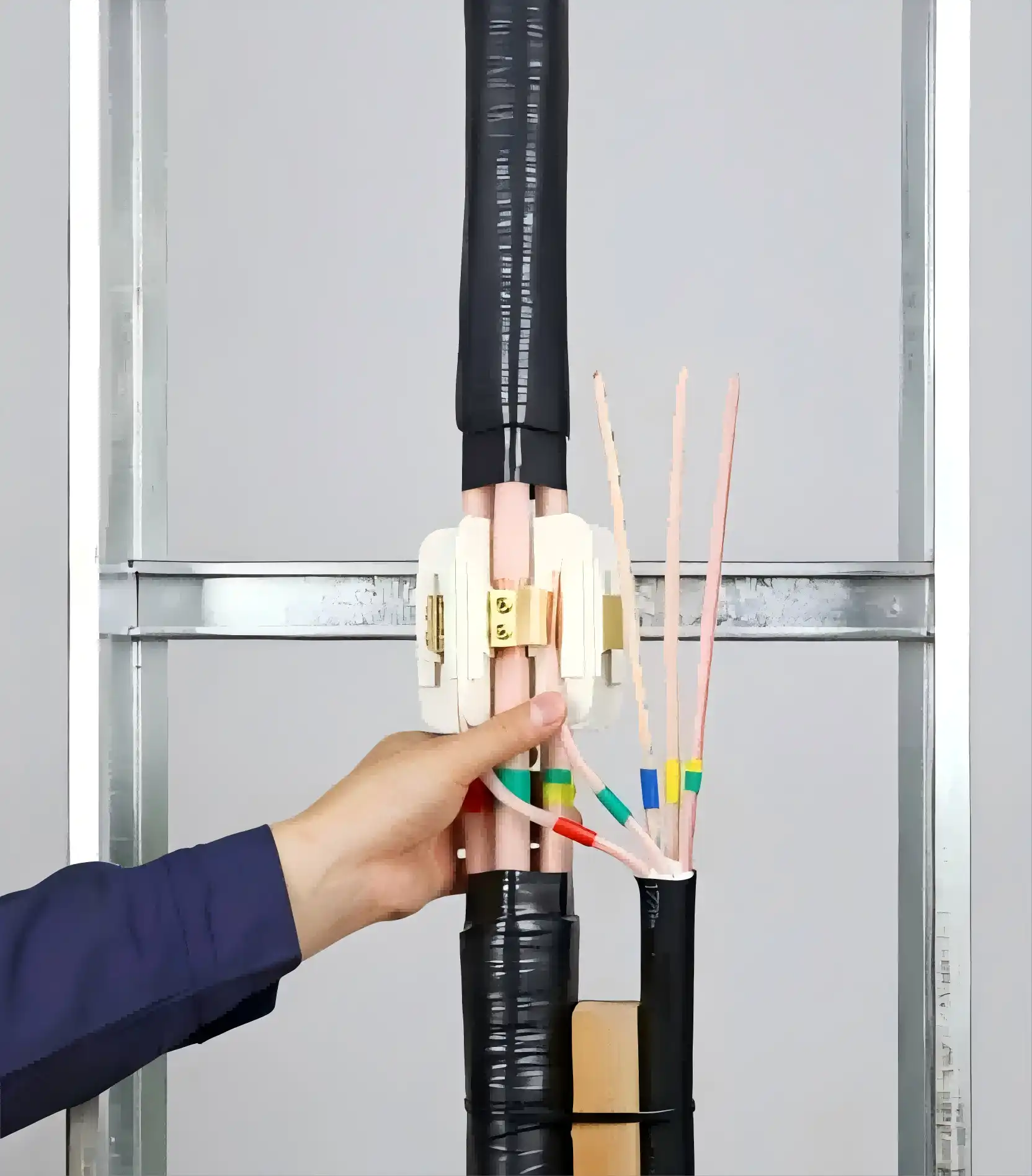

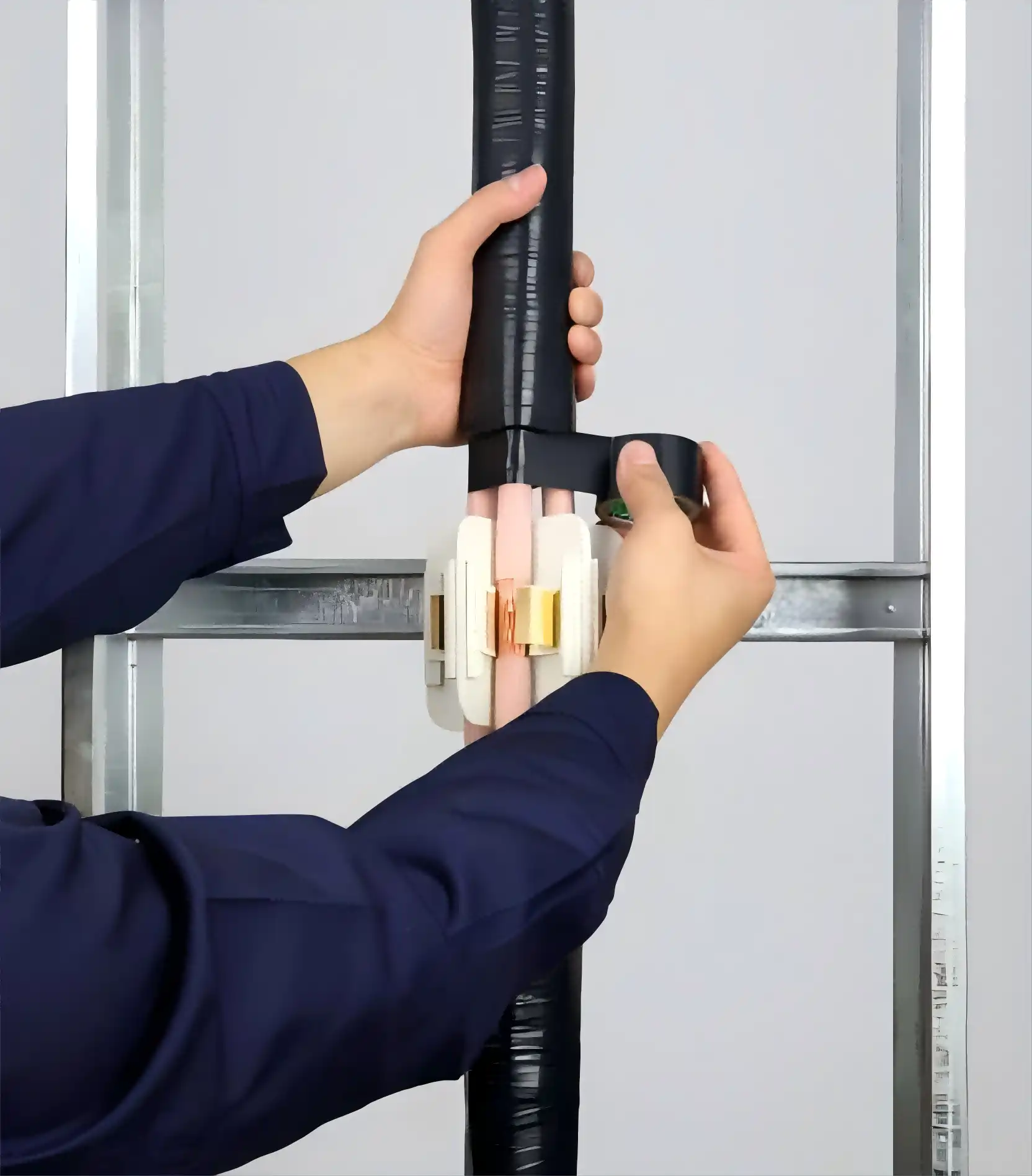

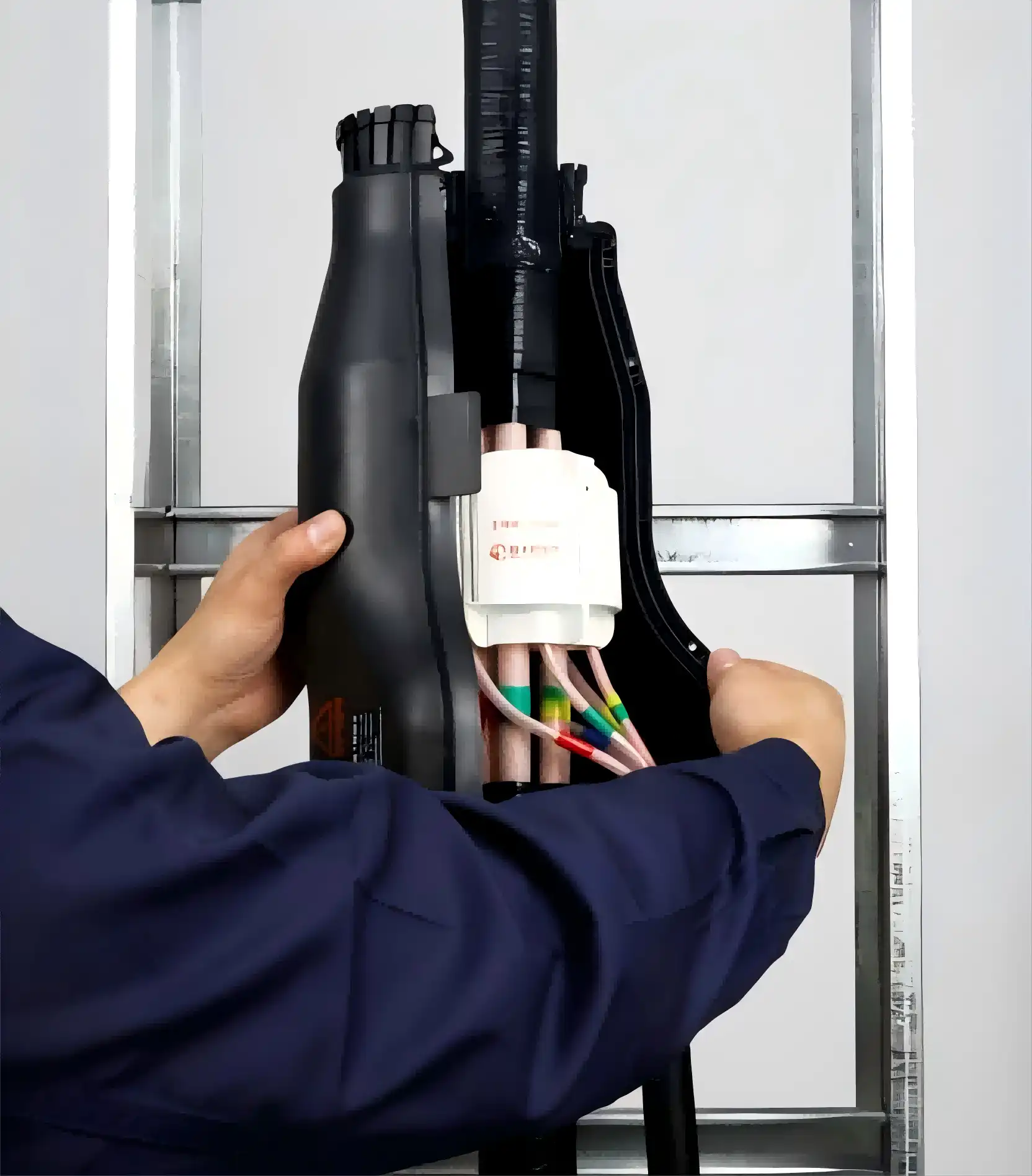

Installation Steps
Installation Video Link: https://www.tiktok.com/@okm_ipc_branch.cable
Installation Video Link: https://www.youtube.com/@OKMBranchCableIPC

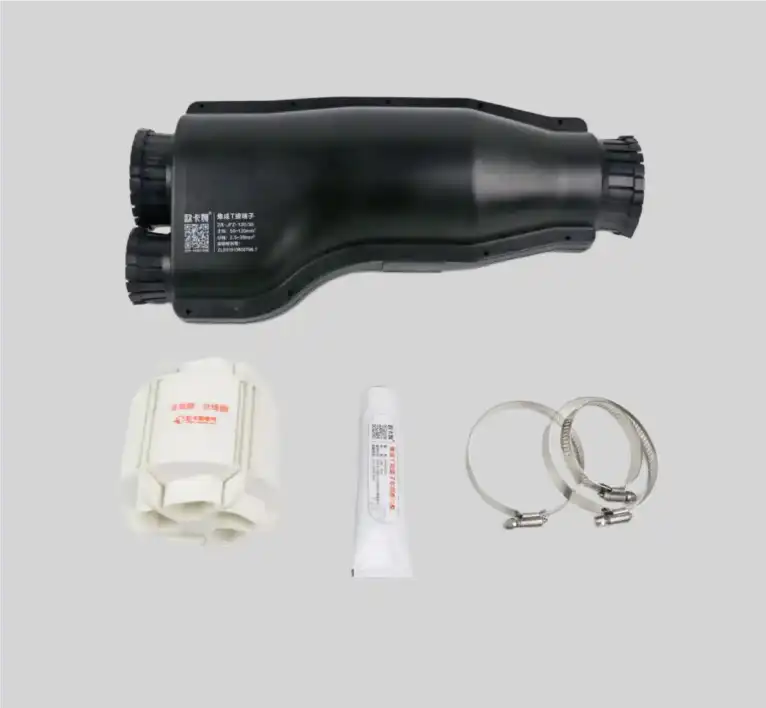

Product Introduction

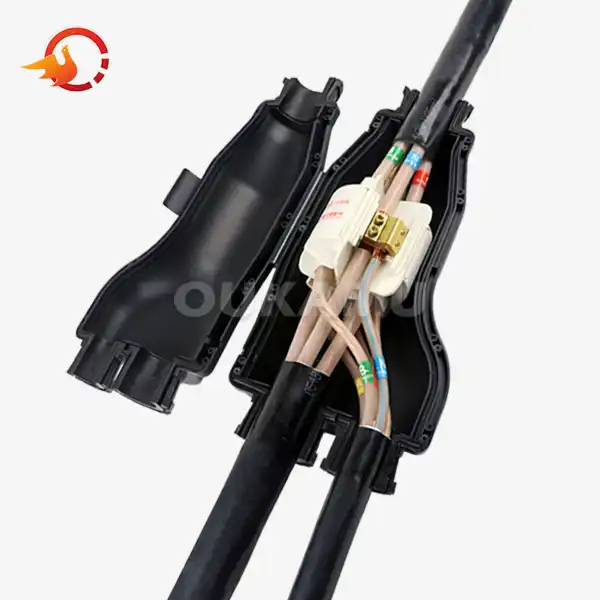

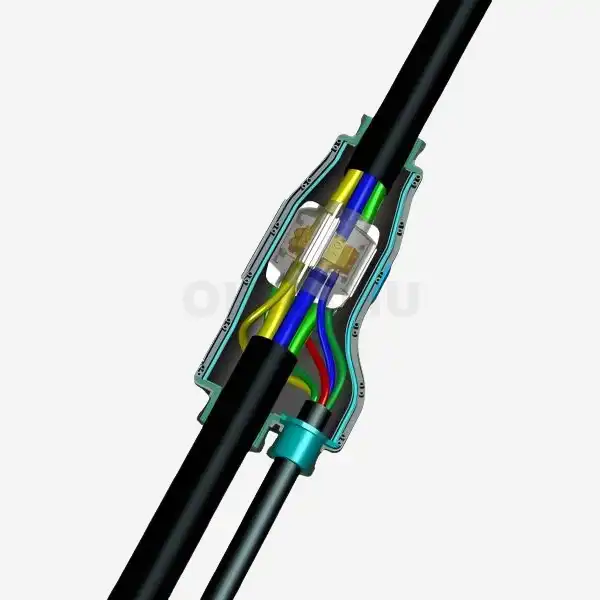

Our product is a compact, beautifully designed enclosure that provides a safe and reliable connection point for street light switches and wiring. With its IP>65 safety protection level, this junction box ensures that your street lighting system remains protected from the elements, minimizing the risk of electrical shock or short circuits. The one-piece injection molding design of the insulation protection box body and rail provides a seamless and secure connection, while the built-in pure copper grounding or zeroing terminals guarantee a reliable and efficient electrical connection.

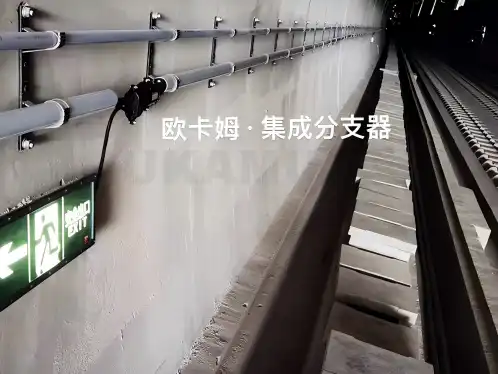

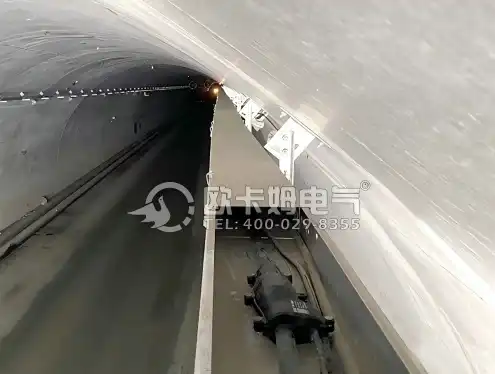

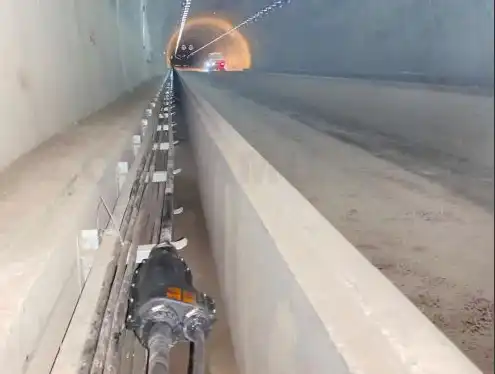

Product Applications
Technical Parameters
Safety protection level: IP>65
Material: One-piece injection molding with insulation protection box body and rail
Wires and cables entering and exiting the insulation protection box body: Locked and waterproofed by waterproof locks
Built-in pure copper grounding or zeroing terminals
Waterproof mechanism: Set on the joint surface of the upper and lower insulation protection box bodies
Metal hanging plate: Set on the back of the box body for easy installation

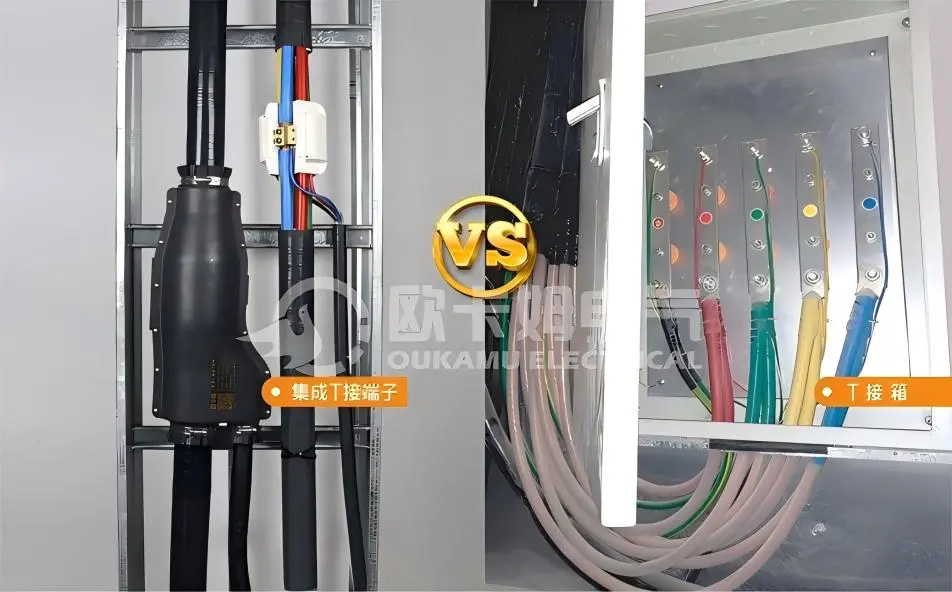

Core Advantages
Our Passage Lighting Intersection Box offers a scope of advantages that make it an ideal answer for road lighting applications. These are some:
Little size and conservative construction, making it simple to introduce and keep up with
Wonderful appearance, with a smooth and present day plan that supplements metropolitan road lighting frameworks
Protection and waterproof insurance, guaranteeing a protected and dependable electrical association
Basic development and helpful upkeep, diminishing the gamble of electrical shock or shortcircuits
Standard determinations, making it simple to coordinate with existing road lighting frameworks
Practical and reasonable, giving a savvy answer for road lighting applications
Product Advantages
Our Tunnel Lighting Junction Box has a number of benefits that are specific to the product, in addition to its fundamental benefits. These are some:
A waterproof component that guarantees a safe and dependable electrical association
An implicit unadulterated copper establishing or focusing terminal that gives a productive and dependable electrical association
A metal hanging plate that makes establishment simple and helpful
A scope of rail-type streetlamp switches that can be prepared, making it a flexible and versatile arrangement

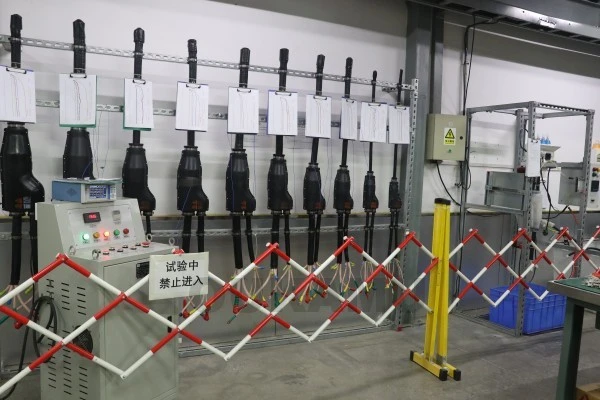

Quality Control
At Xi'an OUKAMU, we're focused on conveying excellent items that satisfy the most elevated guidelines of wellbeing and dependability. To ensure that it meets our stringent requirements, our Tunnel Lighting Junction Box is subjected to stringent testing and quality control procedures. We utilize simply the best materials and assembling cycles to guarantee that our items are sturdy, dependable, and durable.
Packaging and Transportation
To ensure that it reaches your door in perfect condition, our product is transported and packaged with care. We utilize solid and sturdy bundling materials to safeguard the item during transportation, and our accomplished strategies group guarantees that the item is conveyed rapidly and productively.
Contact Us
Please don't hesitate to get in touch with us if you want more information about our Tunnel Lighting Junction Box or to place an order. We look forward to collaborating with you to provide a street lighting solution that is both safe and dependable, and our helpful and knowledgeable customer service team is always willing to assist you.
